Model# GDT225SSL0SS

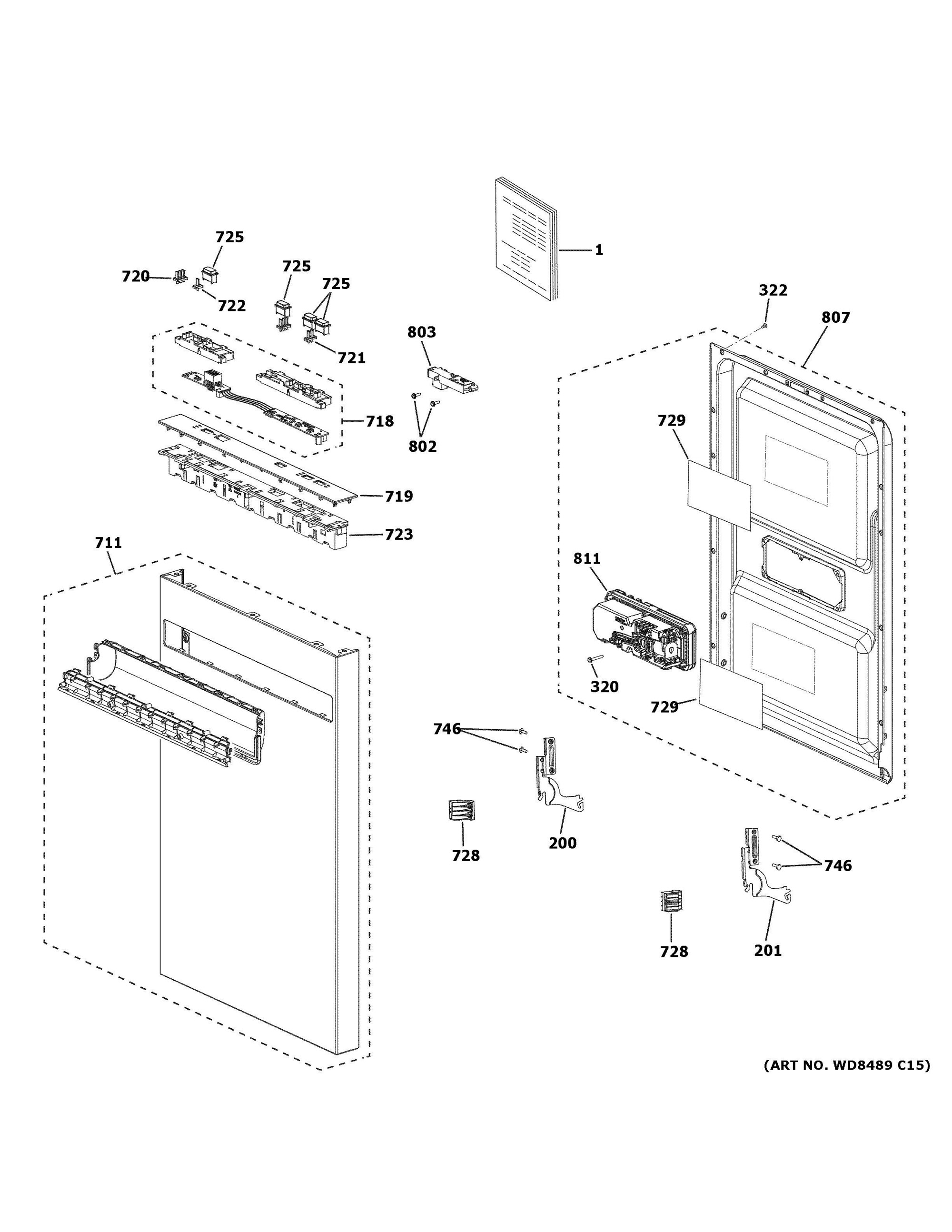

The image and part list below are associated with the component: ESCUTCHEON DOOR ASSEMBLY:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PM MINI-MANUAL | 31-30895 | 1 | 11 days | ||
|
PM OWNERS MANUAL | 49-55124 | 1 | 11 days | ||
|
PM INSTALL INSTRUCTIONS | 31-31590 | 1 | 11 days | ||
|
HINGE MECHANISM LH | WD01X24738 | 200 | 11 days | ||
|
HINGE MECHANISM RH | WD01X24739 | 201 | 11 days | ||
|
SCREW | WD02X24690 | 320 | 11 days | ||
|
OUTER DOOR PANEL ASM GDT SS | WD27X24744 | 711 | 11 days | ||
|
UI CONTROL ASM | WD21X24701 | WD21X28718 | 718 | 11 days | |
|
CONSOLE COVER GDT SS | WD34X24732 | 719 | 11 days | ||
|
LIGHT PIPE 3 | WD21X24669 | WD02X26239 | 720 | 11 days | |
|
LIGHT PIPE 2 | WD21X24668 | WD02X26241 | 721 | 11 days | |
|
LIGHT PIPE 1 | WD21X24667 | WD02X26240 | 722 | - |
|
|
CONSOLE | WD12X24730 | WD12X26198 | 723 | 11 days | |
|
BUTTONS DORIAN GREY | WD09X24601 | 725 | 11 days | ||
|
DOOR SUPPORTING BLOCK | WD01X24735 | WD01X26238 | 728 | 11 days | |
|
DOOR SUPPORTING FOAM | WD01X24736 | 729 | 11 days | ||
|
SCREW WATER VALVE | WD02X24617 | 746 | 11 days | ||
|
DETERGENT MODULE COVER | WD31X24638 | 801 | 11 days | ||
|
SCREW LATCH ASM | WD02X24697 | 802 | 11 days | ||
|
DOOR LATCH | WD12X24644 | 803 | 11 days | ||
|
INNER DOOR ASM | WD31X24740 | 807 | 11 days | ||
|
DETERGENT MODULE | WD12X24637 | 811 | 11 days |
