Model# GDSL3KCYCRLS

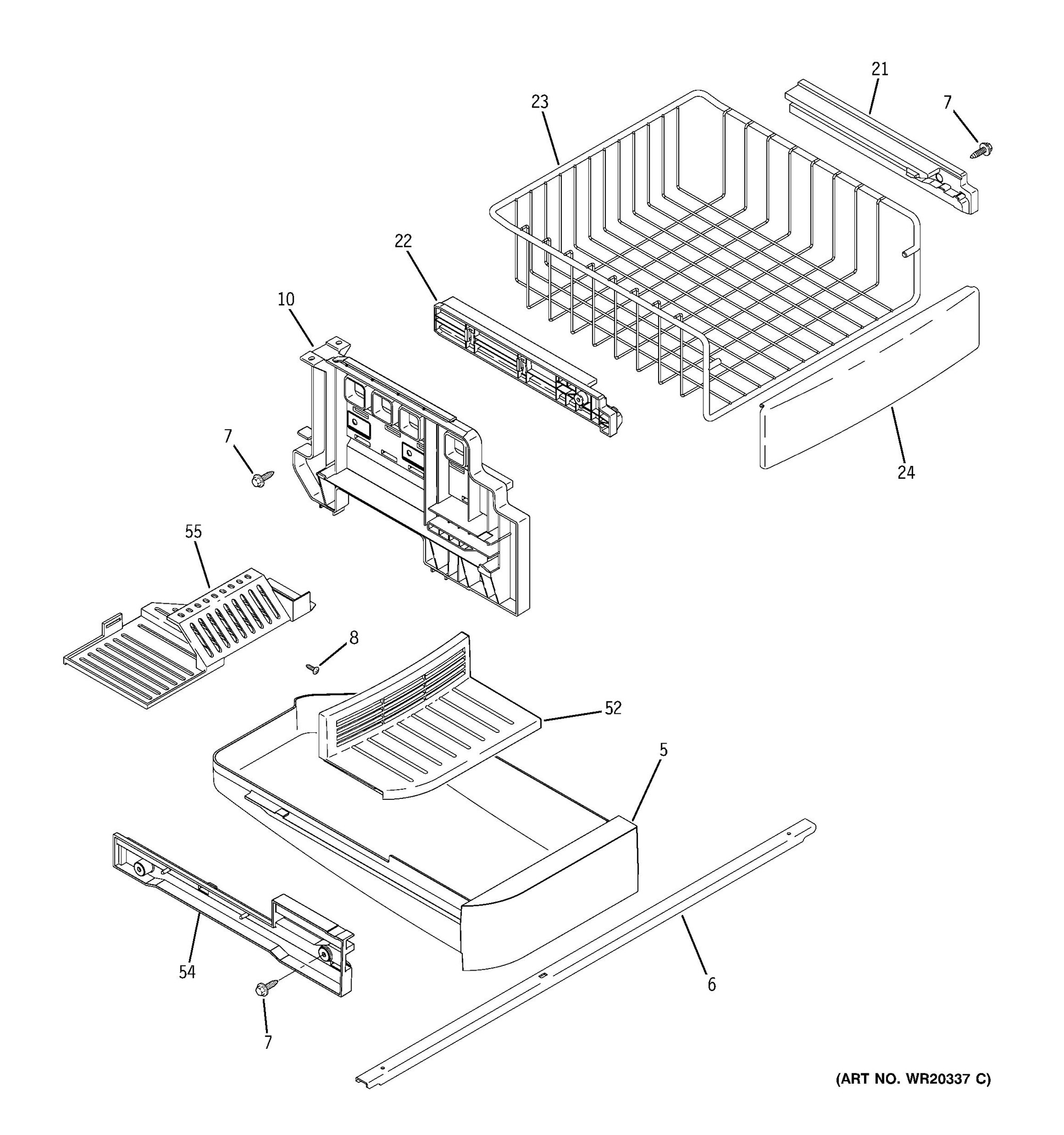

The image and part list below are associated with the component: FREEZER SHELVES:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
DIVIDER GUIDE RAIL | WR02X12871 | WR02X13594 | 10 | 5 days | |
|
SLIDE UPPER BASKET | WR72X10302 | WR72X27367 | 21 | 11 days | |
|
SLIDE UPPER BASKET | WR72X10303 | WR72X27368 | 22 | 11 days | |
|
BASKET UPPER | WR21X10180 | 23 | 5 days | ||
|
TRIM BASKET | WR12X10923 | 24 | 5 days | ||
|
ICE DRAWER | WR30X10106 | WR30X10140 | 5 | 11 days | |
|
SHELF CHILLER | WR30X10107 | WR30X10143 | 52 | 11 days | |
|
GLIDE LH | WR72X10301 | 54 | 5 days | ||
|
COVER DRAWER ICE | WR17X12564 | 55 | 5 days | ||
|
BEAM SUPPORT | WR02X12872 | 6 | 5 days | ||
|
SCR 8-18 AB HXW 1/2 S | WR01X10612 | WR01X10606 | 7 | 5 days | |
|
SCR 8-18 AB PHR 1/2 S | WR01X10607 | 8 | 5 days |
