Model# GDP665SYN8FS

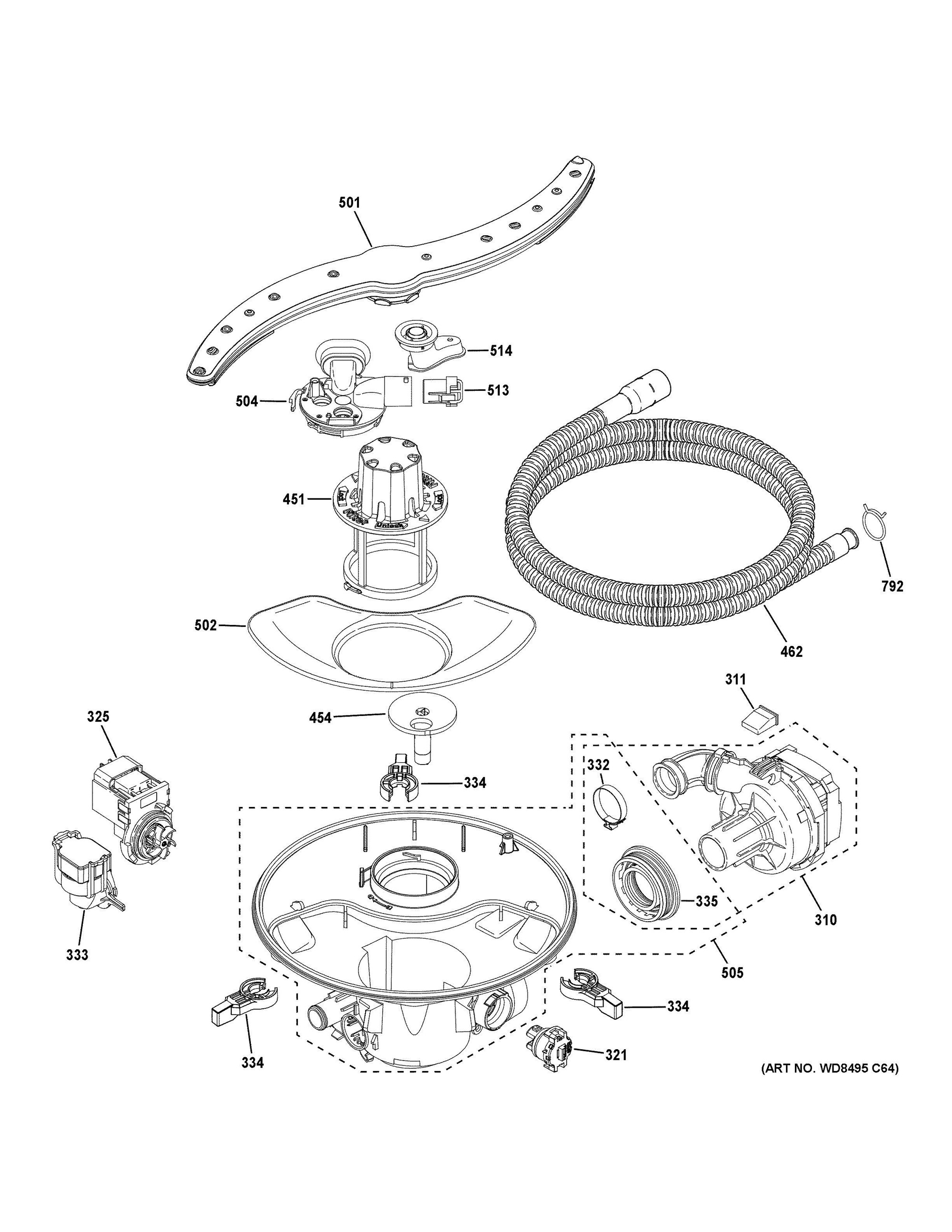

The image and part list below are associated with the component: MOTOR SUMP FILTER ASSEMBLY:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
WASH PUMP | WD19X31499 | WD19X32518 | 310 | 11 days | |
|
PUMP ISOLATOR HANGER | WD02X28359 | 311 | 11 days | ||
|
TURBIDITY SENSOR | WD21X29818 | 321 | 11 days | ||
|
DRAIN PUMP ASM | WD19X25461 | 325 | 11 days | ||
|
CLAMP | WD02X25470 | WD01X27538 | 332 | 11 days | |
|
PRESSURE SENSOR ASM | WD21X25468 | 333 | 11 days | ||
|
SUMP LATCH | WD01X28338 | 334 | 11 days | ||
|
FLOATING SEAL ASM | WD08X27458 | 335 | 11 days | ||
|
USER CLEANABLE FINE FILTER | WD22X25463 | ANABLE FINE FILTER | 451 | 11 days | |
|
DRAIN TUBE ASM | WD24X10062 | 462 | 2 days | ||
|
LOWER SPRAY ARM ASSEMBLY | WD22X27724 | WD22X33499 | 501 | 11 days | |
|
PLASTIC COURSE FILTER | WD22X25465 | 502 | 11 days | ||
|
FOUR PORT DIVERTER AND PLUG ASM | WD19X26398 | WD19X34198 | 504 | 11 days | |
|
SUMP OVERMOLD AND GASKET | WD19X27779 | WD19X28199 | 505 | 11 days | |
|
SPRING CLAMP | WD01X25061 | 792 | 11 days |
