Model# GDP630PYR0FS

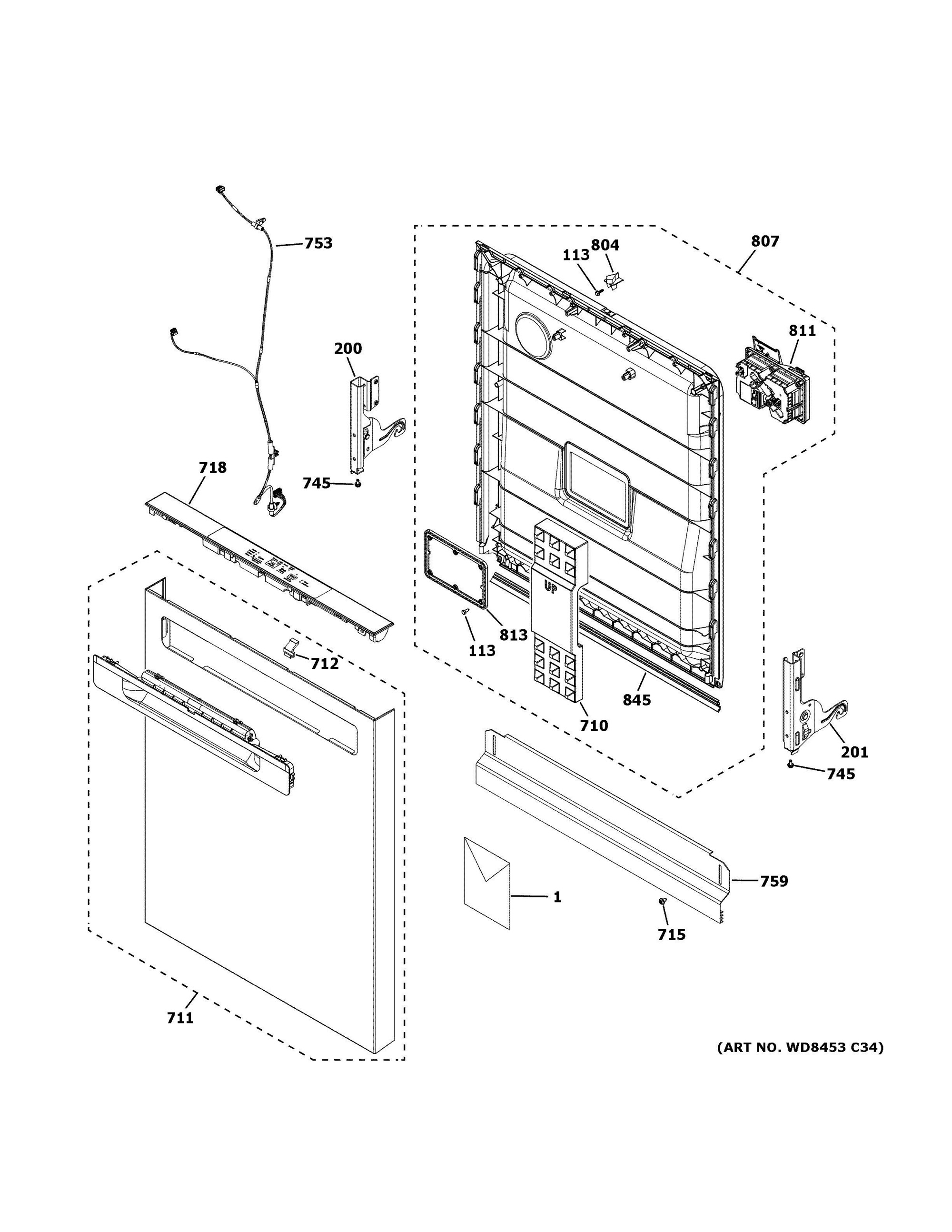

The image and part list below are associated with the component: ESCUTCHEON DOOR ASSEMBLY:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PM OWNERS MANUAL | 49-4000218 | 1 | 11 days | ||
|
PM INSTALL INSTRUCTIONS | 31-4000220 | 1 | 11 days | ||
|
PM MINI MANUAL AND WIRING | 31-4000221 | 1 | 11 days | ||
|
PM QUICK OWNERS MANUAL | 49-4000219 | 1 | 11 days | ||
|
INSERT MINI MANUAL | 165D9739P054 | 1 | 11 days | ||
|
SCREW 8-18 PL HXW 1/2 | WD01X27719 | 113 | 11 days | ||
|
DOOR HINGE ASSEMBLY LEFT | WD01X27721 | 200 | 11 days | ||
|
DOOR HINGE ASSEMBLY RIGHT | WD01X27720 | 201 | 11 days | ||
|
DOOR FOAM BLOCK | WD01X29918 | 710 | 11 days | ||
|
STAINLESS STEEL OUTER DOOR PANEL FS | WD27X29980 | WD27X30345 | 711 | 11 days | |
|
DOOR LENS | WD01X29998 | 712 | 11 days | ||
|
SCR 10-32 GX HXW 3/8 | WD02X10220 | 715 | 2 days | ||
|
CONSOLE COVER AND CONFIGURED UI BOARD | WD21X29751 | WD21X33550 | 718 | 11 days | |
|
SCR 10-32 GX IHXW 9/16 S | WD01X22514 | 745 | 11 days | ||
|
UI HARNESS | WD21X29755 | WD21X32718 | 753 | 11 days | |
|
BLACK TOE KICK | WD27X27752 | 759 | 11 days | ||
|
STRIKER LATCH | WD13X10071 | 804 | 2 days | ||
|
INNER DOOR | WD27X29959 | WD27X30352 | 807 | 11 days | |
|
DETERGENT MODULE | WD12X28239 | 811 | 11 days | ||
|
PLATE DETERGENT | WD12X10420 | 813 | 2 days | ||
|
GASKET BEACH PLASTIC | WD08X21894 | 845 | 11 days |
