Model# GDE20ESEARSS

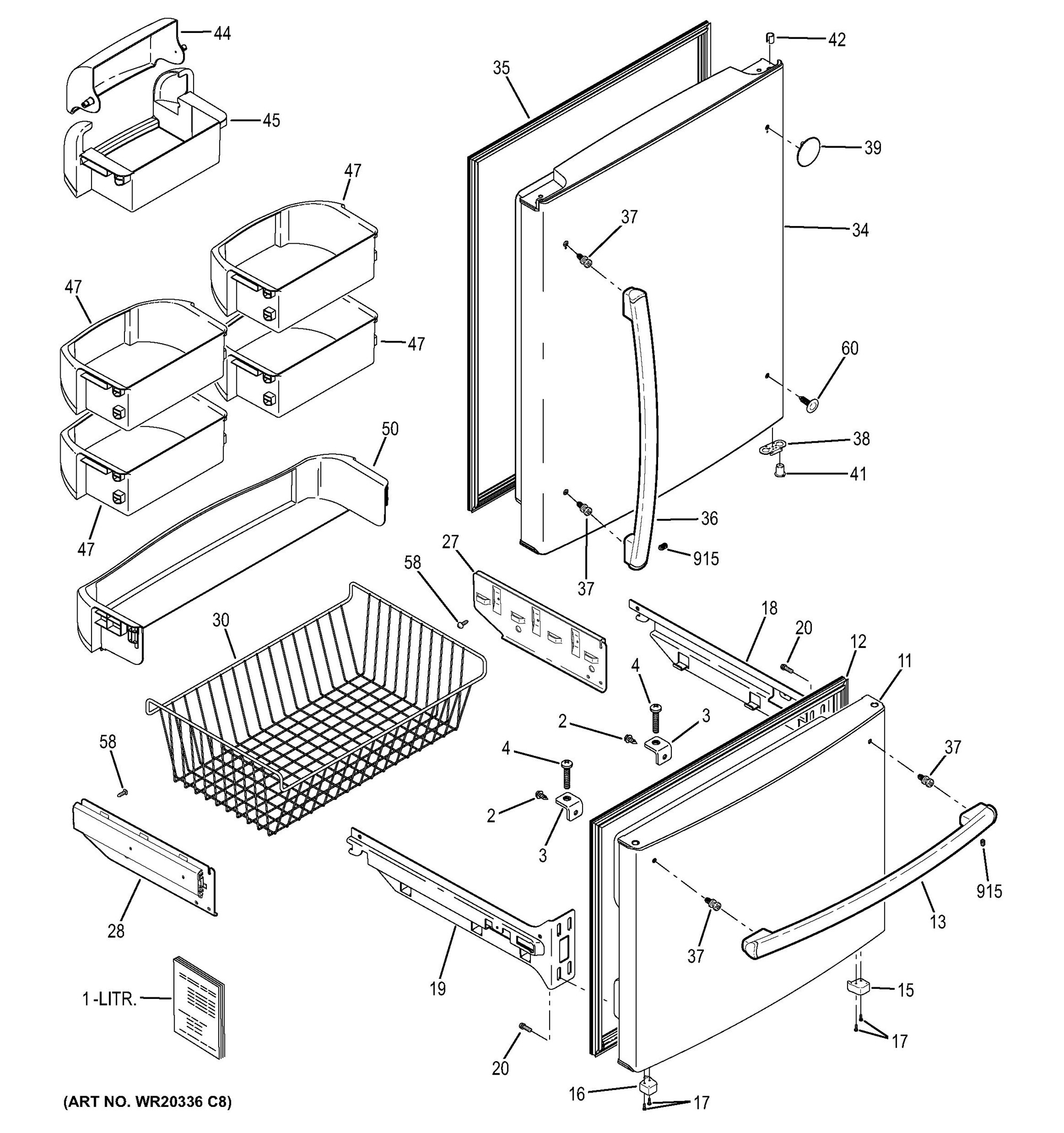

The image and part list below are associated with the component: DOORS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PM GUIDE OWNERS | 49-60539 | 1 | 11 days | ||
|
PM MINI WIRING MANUAL | 31-51740 | 1 | 11 days | ||
|
ANCHOR SCREW VERTICAL | 238C3259P001 | 1 | 11 days | ||
|
HINGE TOP | 200D8629P002 | 1 | 11 days | ||
|
COUPON DOOR BF | 225D7402P005 | 1 | 11 days | ||
|
COUPON DOOR BF | 225D7402P012 | 1 | 11 days | ||
|
HINGE CENTER PLATE | 238C3040P002 | 1 | 11 days | ||
|
COVER HINGE TOP | WR02X20494 | 1 | 11 days | ||
|
DOOR INNER FF | 200D8166P001 | 1 | 11 days | ||
|
DO0R INNER FZ | 200D8167P001 | 1 | 11 days | ||
|
DOOR PREFOAM FF ASM | 200D8416G025 | 1 | 11 days | ||
|
DOOR PREFOAM FZ ASM | 200D9018G035 | 1 | 11 days | ||
|
DOOR OUTER | 200D9245G035 | 1 | 11 days | ||
|
DOOR OUTER | 200D9245G036 | 1 | 11 days | ||
|
DOOR FOAM FZ ASM | WR78X20520 | 11 | 11 days | ||
|
POLYPROPYLENE TAPE | 238C2226P007 | 12 | 11 days | ||
|
GASKET | WR14X20488 | 12 | 11 days | ||
|
HANDLE TUBULAR ASM | WR12X10933 | 13 | 5 days | ||
|
ARC HANDLE ASM FZ | WR12X20480 | WR12X21085 | 13 | 11 days | |
|
CAM CLOSURE FZ RH | WR02X12693 | 15 | 5 days | ||
|
MULLION INSUL FOAM | 355B1664P001 | 15 | 11 days | ||
|
CAM CLOSURE FZ LH | WR02X12694 | 16 | 5 days | ||
|
SCR 10-16 | WR01X10582 | WR01X10611 | 17 | 5 days | |
|
BRACKET LOWER | WR72X10299 | 18 | 5 days | ||
|
BRACKET LOWER | WR72X10300 | 19 | 5 days | ||
|
SCR 8-32 AB IHWS 3/8 S | WR01X10844 | 2 | 11 days | ||
|
TAPE VENT | 203C4263P001 | 2 | 11 days | ||
|
GASKET VERTICAL ANCHOR | 238C3534P001 | 2 | 11 days | ||
|
SEAL CASE FLANGE | 871319P005 | 2 | 11 days | ||
|
HINGE TOP & PIN ASM | 200D8628G007 | 2 | 11 days | ||
|
DOORPREFOAM FF INNER ASM | 225D2760G001 | 2 | 11 days | ||
|
DOORPREFOAM FZ INNER ASM | 225D2761G001 | 2 | 11 days | ||
|
PIN HINGE TOP | 238C3309P001 | 2 | 11 days | ||
|
PIN STOP | 355B2629P001 | 2 | 11 days | ||
|
SCR 1/4-20 RT FLAT 3/4 S | WR01X10885 | 20 | 5 days | ||
|
SLIDE HOLDER ASM | WR72X10297 | WR49X20767 | 27 | 5 days | |
|
|
SLIDE HOLDER ASM | WR72X10298 | WR49X20767 | 28 | 5 days | |
|
BRACKET SUPPORT | WR02X12870 | 3 | 5 days | ||
|
INSULATION FOAM | 355B1051P001 | 3 | 11 days | ||
|
TAPE IN(REFER TO 523984) | PSTT25A32N | 3 | 11 days | ||
|
TAPE IN(REFER TO 523984) | PSTT25A64N | 3 | 11 days | ||
|
HINGE AND PIN STOP ASM | 225D1897G012 | 3 | 11 days | ||
|
BASKET LOWER | WR21X10182 | 30 | 5 days | ||
|
DOOR FOAM FF ASM | WR78X20513 | WR78X27161 | 34 | 11 days | |
|
FOAM STRIP SE ADH | 355B1266P009 | 35 | 11 days | ||
|
GASKET | WR14X20487 | 35 | 11 days | ||
|
ARC HANDLE ASM FF | WR12X20476 | WR12X21084 | 36 | 11 days | |
|
FASTENER DOOR HANDLE | WR01X11007 | 37 | 5 days | ||
|
STOP DOOR FF | WR02X12895 | 38 | 5 days | ||
|
BADGE GE | WR04X10223 | 39 | 11 days | ||
|
SCREW BRACKET SUPPORT | WR01X10843 | 4 | 5 days | ||
|
ANCHOR SCREW VERT ASM | 238C3535G001 | 4 | 11 days | ||
|
PROTECTIVE FILM | 355B1579P001 | 4 | 11 days | ||
|
CAP FF TOP FULL DOOR | 200D8193P010 | 4 | 11 days | ||
|
CAP FZ BOTTOM FULL DOOR | 200D8452P010 | 4 | 11 days | ||
|
THIMBLE DOOR FF | WR02X12896 | 41 | 5 days | ||
|
HINGE BUSHING | WR02X13406 | 42 | 5 days | ||
|
DOOR DAIRY | WR22X10063 | 44 | 5 days | ||
|
DAIRY BIN | WR22X10073 | 45 | 11 days | ||
|
SHELF MODULE | WR71X20333 | 47 | 5 days | ||
|
SHELF FIXED | WR71X20319 | 50 | 11 days | ||
|
SCR 8-18 AB IHXW 9/16 S | WR01X10588 | 58 | 5 days | ||
|
PLUG BUTTON | WR02X13058 | 60 | 5 days | ||
|
SET SCREW | WR01X20424 | 915 | 5 days |
