Model# GCR36-6

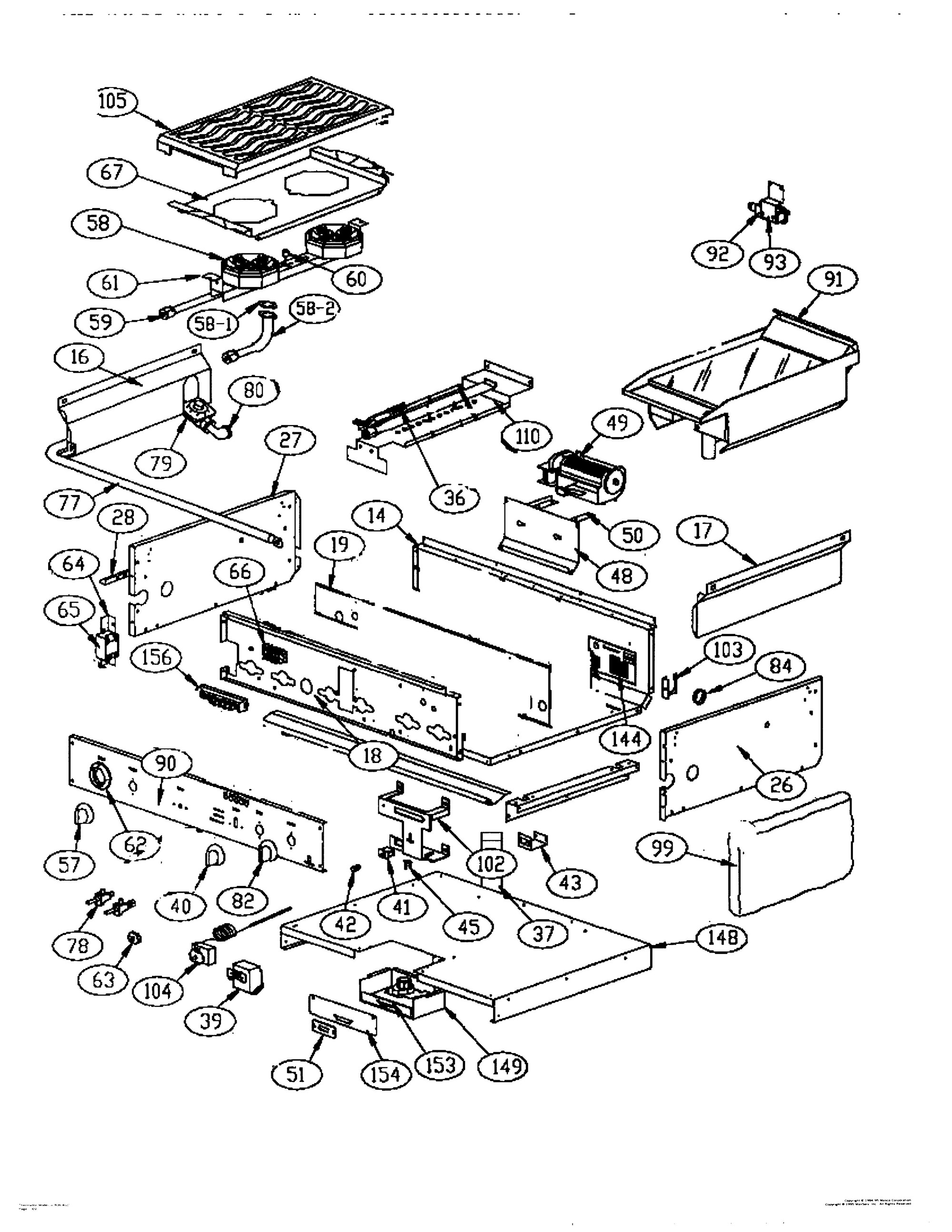

The image and part list below are associated with the component: 02 - GRIDDLE & CONTROL PANEL:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
30 in., control Bracket | 488035 | 00488035 | 102 | 11 days | |
|
Wire Guide | 416237 | 00416237 | 103 | 11 days | |
|
NLA (thermostat | 416176 | 00416176 | 104 | 11 days | |
|
NLA (grid | 143389 | 00143389 | 105 | 11 days | |
|
Griddle Baffle | 369408 | 00369408 | 110 | 11 days | |
|
Rating plate | 369418 | 00369418 | 144 | 11 days | |
|
Indicator Light | 416239 | 00416239 | 145 | 11 days | |
|
Range top | 143325 | 148 | 11 days | ||
|
DOOR LOCK BOX | 35-00-424 | 149 | 11 days | ||
|
GASKET RETAINER | 35-00-167 | 15 | 11 days | ||
|
Latch assy. | 143314 | 00486957 | 153 | 4 days | |
|
Door Lock Barcket | 488078 | 00488078 | 154 | 11 days | |
|
Lower Heat Shield | 416240 | 00416240 | 155 | 11 days | |
|
5-Button Switch | 416192 | 00416192 | 156 | 4 days | |
|
Cover, Cord, Right, GCD36 | 486720 | 00486720 | 17 | 11 days | |
|
NLA (Front baffle assy. | 35-00-372 | 18 | 11 days | ||
|
Heat Shield | 369410 | 00369410 | 19 | 11 days | |
|
Igniter, small | 414136 | 00415504 | 36 | 4 days | |
|
NLA (Oven Vent assy. | 486734 | 00486734 | 37 | 11 days | |
|
Thermostat 30 in. | 486944 | 00486944 | 39 | 11 days | |
|
Oven Knob | 488063 | 00488063 | 40 | 11 days | |
|
Switch Light oven | 416202 | 00416202 | 41 | - |
|
|
Pushbutton | 414137 | 00414487 | 42 | 4 days | |
|
Bracket Switch Light | 488052 | 00488052 | 43 | 11 days | |
|
Thermal cutout, 30 in. range | 488422 | 00488422 | 45 | 11 days | |
|
Face plate Blower | 488066 | 00488066 | 48 | 11 days | |
|
BLOWER MOTOR ASSY | 35-00-392 | 49 | 11 days | ||
|
Blower motor | 35-00-393 | 00488067 | 49A | 11 days | |
|
Bracket, air switch | 35-00-396 | 00415054 | 49B | 4 days | |
|
Paddle, air switch | 35-00-395 | 00417563 | 49C | 11 days | |
|
Cooling fan switch | 20-01-764 | 00416195 | 49D | 4 days | |
|
Cooling fan | 35-00-394 | 00488068 | 49E | 11 days | |
|
Blower Bracket | 488070 | 00488070 | 50 | 11 days | |
|
NLA (Knob, burner | 414051 | 00414051 | 57 | 11 days | |
|
BURNER HEAD | 20-01-536 | 58 | 11 days | ||
|
Gasket, burner | 20-01-552 | 00416179 | 58-1 | 4 days | |
|
NLA (Venturi Tube assy. Sh. | 20-01-525 | 58-2 | 11 days | ||
|
Venturi, Long | 488023 | 00488023 | 59 | 11 days | |
|
Electronic assy.,44 in. | 416215 | 00416215 | 60 | 11 days | |
|
Electronic assy., 30 in. | 35-00-222 | 00416214 | 60A | 11 days | |
|
NLA (burner housing) | 488868 | 00488868 | 61 | 11 days | |
|
Bezel | 416178 | 00416178 | 62 | 11 days | |
|
Switch, Spark Igniter | 414573 | 00414573 | 63 | 4 days | |
|
Bracket, spark module | 416229 | 00416229 | 64 | 11 days | |
|
Module, Spark (Gcr36 | 414574 | 00414574 | 65 | 4 days | |
|
Terminal Block | 416216 | 00416216 | 66 | 11 days | |
|
AERATION PAN | 35-00-229 | 67 | 11 days | ||
|
Burner broiler/grid | 488056 | 00488056 | 69 | 4 days | |
|
Manifold Pipe | 416219 | 00416219 | 77 | 11 days | |
|
Valve kit, w/ Orifices | 414202 | 00414202 | 78 | 4 days | |
|
Regulator | 416222 | 00416222 | 79 | 11 days | |
|
NLA (straight elbow, 1/2-90 NPT | 416223 | 00416223 | 80 | 11 days | |
|
Knob, Griddle | 416196 | 00416196 | 82 | 11 days | |
|
Snap Bushing | 416226 | 00416226 | 84 | 11 days | |
|
NLA (control panel GCR364GD | 35-00-142 | 90 | 11 days | ||
|
NLA (griddle 12 in. assy. | 35-00-259 | 91 | 11 days | ||
|
Valve, Safety-Griddle (H | 414590 | 00414590 | 92 | 11 days | |
|
Bracket, Thermal Valve | 413897 | 00413897 | 93 | 11 days | |
|
Landing Ledge assy. | 488041 | 00488041 | 97 | 11 days | |
|
Insulation 2 in. | 369406 | 00369406 | 99 | 11 days |
