Model# GCE21YETAFSS

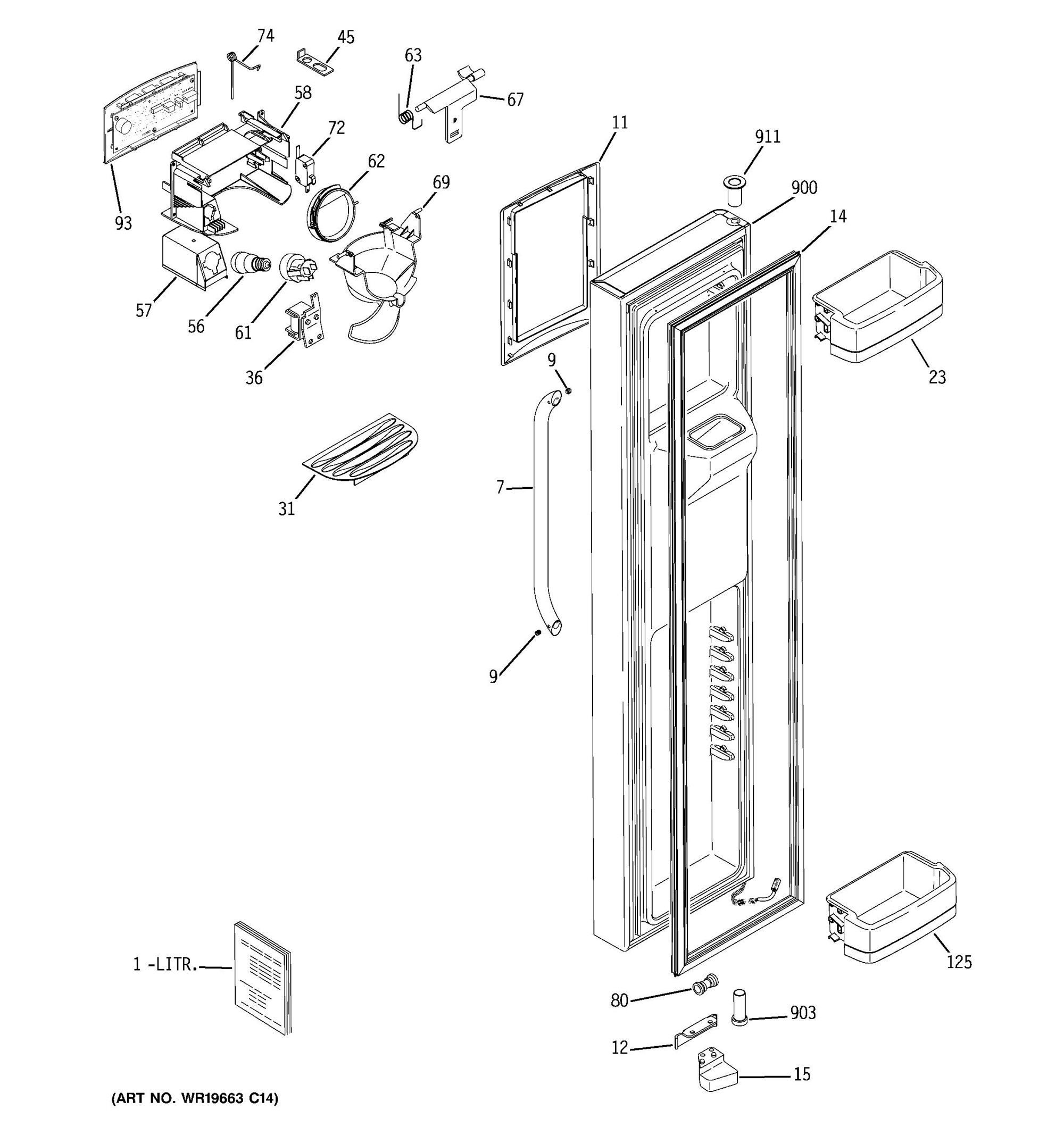

The image and part list below are associated with the component: FREEZER DOOR:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PM MINI WIRING MANUAL | 31-46222 | 1 | 11 days | ||
|
PM GUIDE OWNERS | 49-60358 | 1 | 11 days | ||
|
RECESS TRIM CLAD MDEL BK | WR38X10237 | 11 | 5 days | ||
|
STOP DOOR BK | WR02X10814 | WR02X13425 | 12 | 5 days | |
|
MODULE SHELF FZ | WR71X10379 | 125 | 5 days | ||
|
GASKET DOOR FZ BK | WR24X10158 | WR24X20455 | 14 | 5 days | |
|
CAM CLOSURE FZ BK | WR02X10780 | 15 | 5 days | ||
|
MODULE SHELF FZ FIXED | WR71X10355 | 23 | 11 days | ||
|
GRILLE RECESS BK | WR17X11655 | 31 | 5 days | ||
|
SOLENOID ASM | WR62X10055 | 36 | 5 days | ||
|
RETAINER RECESS DOOR | WR02X8818 | WR2X8818 | 45 | 5 days | |
|
LIGHT DISPENSER | WR02X12208 | WR01X37886 | 56 | 11 days | |
|
REFLECTOR LIGHT | WR02X10670 | 57 | 5 days | ||
|
HOUSING SHIELD DISP | WR17X12116 | WR49X10228 | 58 | 5 days | |
|
SOCKET LAMP | WR02X12007 | WR2X9561 | 61 | 5 days | |
|
DOOR RECESS ASM | WR17X11653 | 62 | 5 days | ||
|
SPRING RECESS DOOR | WR02X10585 | 63 | 5 days | ||
|
CRANK DOOR RECESS | WR17X10706 | 67 | 5 days | ||
|
|
FUNNEL ICE DISP BK | WR17X12084 | WR49X10228 | 69 | 5 days | |
|
TUBULAR HANDLE ASM | WR12X10744 | 7 | 5 days | ||
|
SWITCH | WR23X10224 | WR23X10783 | 72 | 5 days | |
|
SPRING FUNNEL | WR02X10584 | WR49X10233 | 74 | 5 days | |
|
UNION CONNECTOR | WR02X11330 | 80 | 5 days | ||
|
FASTENER HANDLE SS | WR02X12201 | WR02X12028 | 9 | 5 days | |
|
DOOR ASM FZ KIT SS | WR78X11715 | 900 | 11 days | ||
|
THIMBLE DOOR BTM FZ BK | WR01X10234 | 903 | 5 days | ||
|
THIMBLE DOOR TOP BK | WR01X10233 | WR01X10956 | 911 | 11 days | |
|
INTERFACE DISP ASM | WR55X10600 | 93 | 5 days |
