Model# FGSS2635TF6

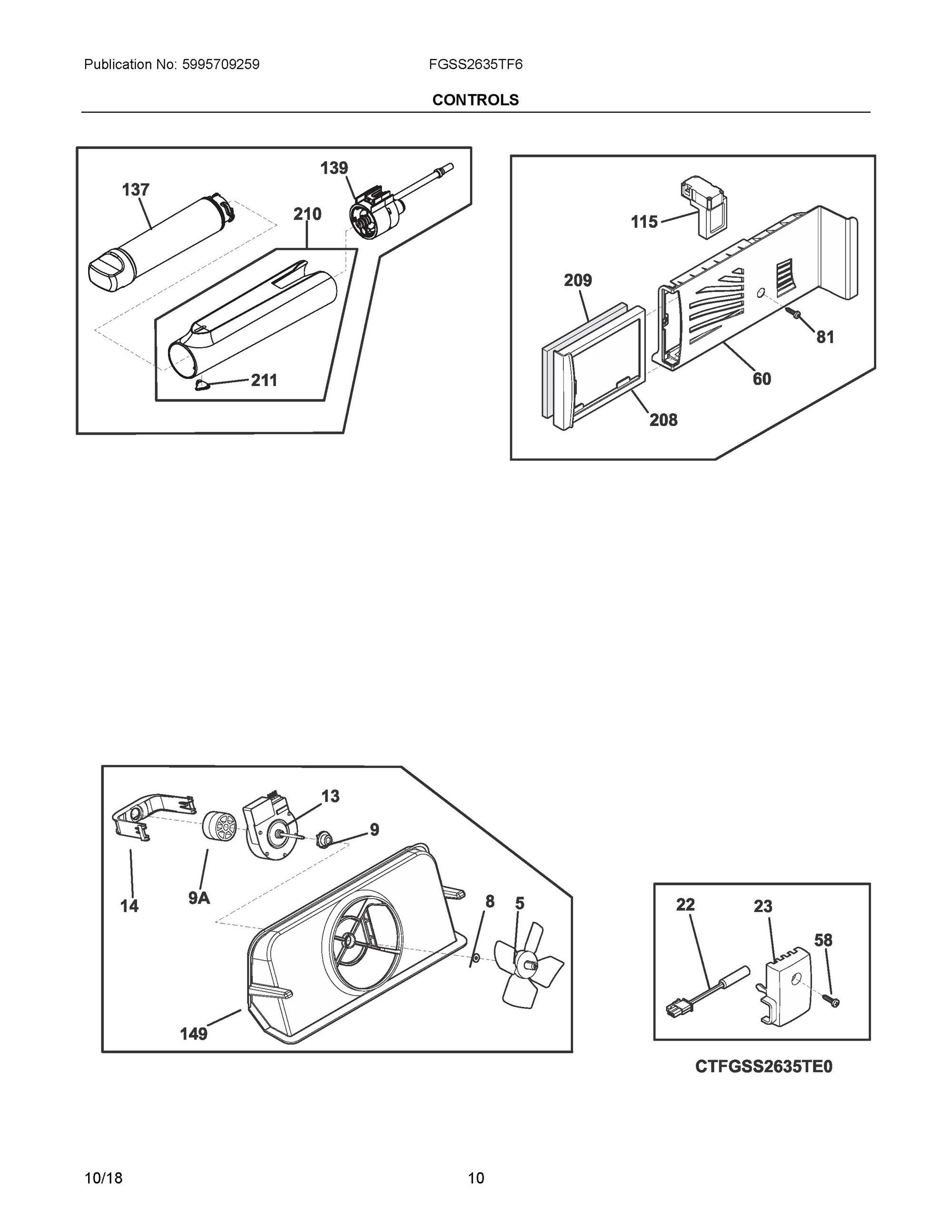

The image and part list below are associated with the component: 06 - CONTROLS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Damper Assy, w/seal | 241853801 | 115 | 3 days | ||
|
MOTOR-BLOWER | 242290001 | 13 | 11 days | ||
|
FILTER ASSEMBLY, PURESOURCE U-II, W/CAP | 807946701 | EPTWFU01 | 137 | 11 days | |
|
MANIFOLD, WATER FILTER, 93.5 | 807931801 | 5304522623 | 139 | 11 days | |
|
Clip, evap fan motor, evap fan motor | 242135301 | 14 | 5 days | ||
|
SHROUD, EVAP FAN, W/SEAL | 242204506 | 149 | 11 days | ||
|
Sleeve, air filter, front | 241754301 | 208 | 5 days | ||
|
FILTER, AIR | 242047804 | EAFCBF | 209 | 5 days | |
|
HOUSING, WATER FILTER, W/DRIP PAD | 807747304 | 210 | 11 days | ||
|
PLUG, FILTER HOUSING | 807932201 | 211 | 11 days | ||
|
SENSOR, TEMPERATURE, 10K, NTC | 240597203 | 240597220 | 22 | 11 days | |
|
COVER-SENSOR | 241512901 | 23 | 5 days | ||
|
Fan Blade, red, evaporator fan | 5308000010 | 5 | 5 days | ||
|
Screw, 10-32 x 3/8 | 241548003 | 58 | 5 days | ||
|
HOUSING, DIFFUSER, & AIR FILTER | 242287001 | 60 | 11 days | ||
|
WASHER, | 215474201 | 8 | 5 days | ||
|
Screw, hx wshr hd sems, 8-15A x 0.625 | 5304455658 | 218843801 | 81 | 5 days | |
|
Bushing-motor mtg | 241563601 | 9 | 5 days | ||
|
BUSHING-MOTOR MTG | 241845301 | 9A | 5 days | ||
|
Screw, hex washer head, 8-18AB x 1/2 | 241500303 | NI | 5 days | ||
|
INSULATION-AIR DUCT | 241945101 | NIA | 5 days | ||
|
TUBE-WATER, 97.5 | 242220119 | NIA | 11 days |
