Model# FGGH3047VFD

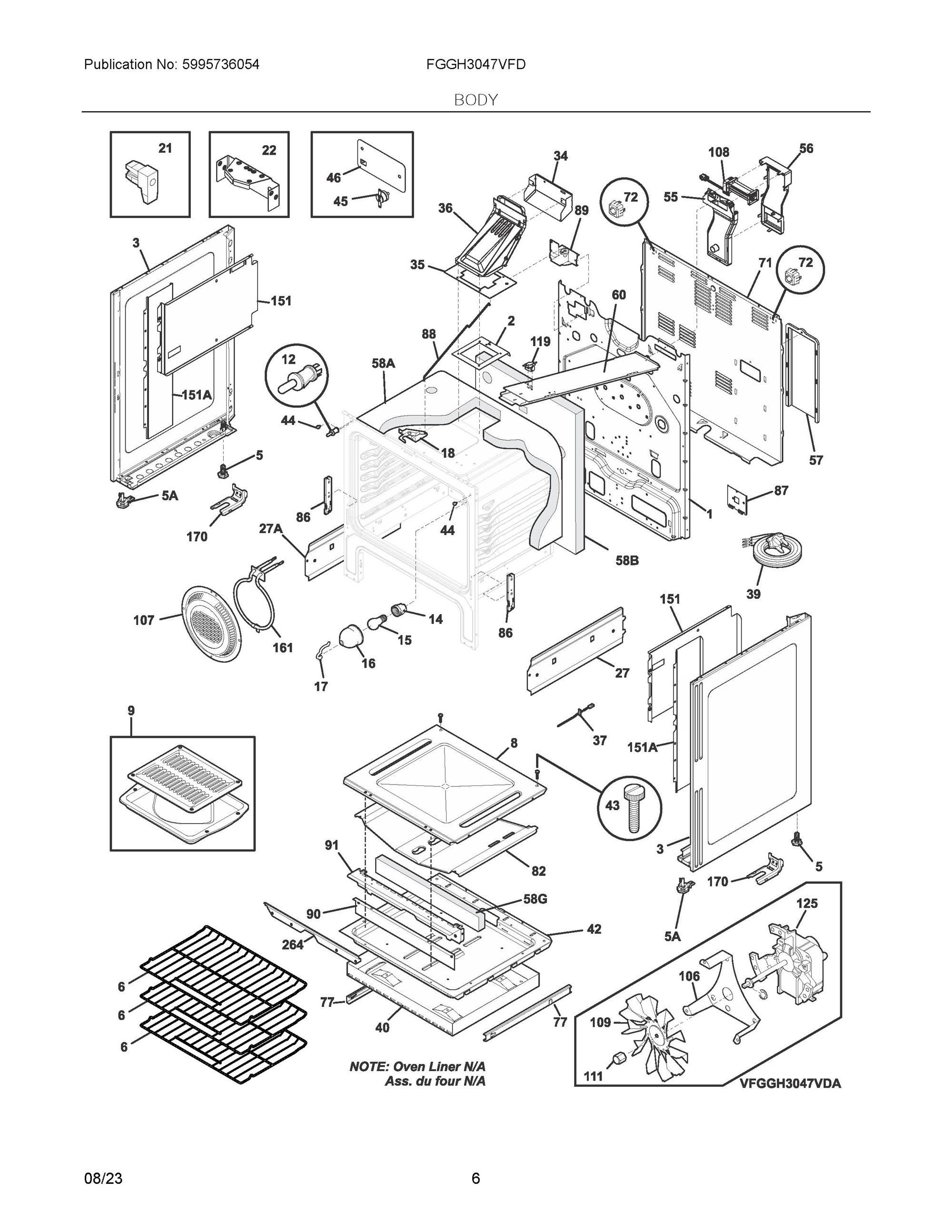

The image and part list below are associated with the component: 04 - BODY:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
BACK, MAIN | 5304527900 | 1 | 11 days | ||
|
Bracket, motor mtg. | 316404100 | 106 | 5 days | ||
|
Cover, fan | 316026701 | 107 | 5 days | ||
|
FAN ASSEMBLY, COOLING | 5304514166 | 108 | 11 days | ||
|
Fan Blade | 318398302 | 109 | 5 days | ||
|
Nut, fan retainer | 316136600 | 111 | 5 days | ||
|
THERMOSTAT, SAFETY, 105C | 318578506 | 119 | 5 days | ||
|
Switch, oven light, door frame | 316445501 | 12 | - |
|
|
|
Motor-fan | 316256900 | 125 | 5 days | ||
|
RECEPTACLE, OVEN LIGHT, 24 # | 316116400 | 14 | 5 days | ||
|
LAMP, OVEN LIGHT | 316538904 | 15 | 11 days | ||
|
SHIELD, HEAT, BODYSIDE, (2) | 5304518926 | 151 | 11 days | ||
|
SHIELD, BODYSIDE | 5304521158 | 151A | 11 days | ||
|
LENS, OVEN LIGHT, GLASS | 5304524341 | 16 | 11 days | ||
|
ELEMENT, CONVECTION, 900W | 5304518014 | 161 | 11 days | ||
|
Retainer, lens | 316087500 | 17 | 5 days | ||
|
ANTI TIP KIT, ASSY, W/TEMPLATE | 316112005 | 170 | 5 days | ||
|
LATCH ASSEMBLY, OVEN DOOR | 316405800 | 18 | 5 days | ||
|
Brace, oven top | 316437100 | 2 | 11 days | ||
|
Clip, bodyside | 316408000 | 21 | 5 days | ||
|
BRACKET, SUPPORT, BODY SIDE, (2) | 5304514125 | 22 | 11 days | ||
|
Bracket, air dam | 316404700 | 264 | 11 days | ||
|
SHIELD, WARMER SIDE, RH | 316604100 | 27 | 11 days | ||
|
SHIELD, WARMER SIDE, LH | 316604101 | 27A | 11 days | ||
|
PANEL, BODYSIDE, BLACK, RH | 316400144 | 3 | 11 days | ||
|
SHIELD, FLUEBOX | 5304514137 | 34 | 11 days | ||
|
GASKET-FLUE | 316542102 | 35 | 11 days | ||
|
FLUEBOX, ASSEMBLY | 5304514132 | 36 | 11 days | ||
|
Probe, oven temp | 316490000 | 37 | 5 days | ||
|
CORD, POWER, BLACK, 13A | 5304534000 | 39 | 11 days | ||
|
PANEL, BODYSIDE, BLACK, LH | 316400145 | 3A | 11 days | ||
|
SHIELD, WARMER DRAWER | 316602600 | 40 | 11 days | ||
|
SHIELD, CHASSIS, LOWER | 316601600 | 42 | 11 days | ||
|
Screw, 8-18 x 1.438, oven bottom | 3131732 | 43 | 5 days | ||
|
BUMPER, FRONT, MAIN | 316517600 | 44 | 5 days | ||
|
THERMOSTAT, THERMAL CUT-OFF, 110, AUTO RESET | 5304514198 | 45 | 11 days | ||
|
PLATE, TCO MOUNTING | 5304514193 | 46 | 11 days | ||
|
Screw, leveling, plastic, rear, (2) | 316272900 | 5 | 5 days | ||
|
DUCT, INLET AIR, FRONT | 5304514171 | 55 | 11 days | ||
|
DUCT, INLET AIR, REAR | 5304514172 | 56 | 11 days | ||
|
DUCT, EXTERIOR | 5304514173 | 57 | 11 days | ||
|
INSULATION, OVEN WRAPPER | 316403700 | 58A | 5 days | ||
|
INSULATION, OVEN BACK | 316403600 | 58B | 5 days | ||
|
INSULATION, MAIN FRONT | 08067973 | 58G | 5 days | ||
|
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET & LEG | 5304509869 | 5A | 11 days | ||
|
RACK, OVEN | 316498003 | 316496201 | 6 | 5 days | |
|
DUCT, COOLING, 60 | 5304531693 | 60 | 11 days | ||
|
SHIELD, WIRE, REAR | 5304514175 | 71 | 11 days | ||
|
Screw, valve mtg., 1/4 - 20 | 316215600 | 72 | 5 days | ||
|
Glide, warmer drawer, outer/RH & LH, (2) | 316456700 | 77 | 5 days | ||
|
SHIELD, BAKE | 316601401 | 82 | 11 days | ||
|
Receptacle, hinge, (2) | 316508600 | 316580700 | 86 | 5 days | |
|
PLATE, POWER CORD, MOUNT | 316602200 | 87 | 11 days | ||
|
ROD, AUTO LATCH | 316232702 | 88 | 11 days | ||
|
MOTOR, LATCH | 5304528973 | 89 | 11 days | ||
|
BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY | 5304494997 | 9 | 11 days | ||
|
SHIELD, MAIN, FRONT | 316601900 | 90 | 11 days | ||
|
SHIELD, BURNER, FRONT | 316601800 | 91 | 11 days | ||
|
Screw, 8-18 X 11/16, black, (3) | 316021132 | NI | 5 days | ||
|
Screw, hex head cup pt, 8-18 x 0.375, black | 316021105 | 316021109 | NI | 5 days | |
|
Support, oven bottom | 316064600 | NI | 11 days | ||
|
Screw, wafer hd sq dr, 8-18AB x 0.5 | 5303271648 | NI | 5 days | ||
|
Screw, ground wire | 316001003 | 316001017 | NI | 11 days | |
|
Screw, bracket, stiffener, (4) | 316279600 | NI | 5 days | ||
|
|
Screw, 8-18 x 0.5, chrome | 316021109 | NI | 5 days | ||
|
SCREW, SIMS LP, #8-32 X 5/16 | 316418900 | NI | 5 days | ||
|
SCREW, SELF PIERCE, #8, 18X.63 | 297174300 | 241500305 | NI | 11 days | |
|
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* | 5303285179 | NI | 5 days | ||
|
SCREW, TRUSS SQDR, 8A X 1 | 5303289910 | NI | 5 days | ||
|
HARNESS, WIRING, LOW VOLTAGE | 5304532498 | NI | 11 days | ||
|
HARNESS-MAIN G OVC3 FCFS, * | 5304533252 | NI | 11 days | ||
|
|
Bracket, anti-tip | 316107200 | 316112005 | NIA | 5 days | |
|
CLIP, WIRE | 316432800 | NIA | 11 days | ||
|
BRACKET, MIXER, BAKE | 316602300 | NIA | 11 days | ||
|
NUT, LOCK, M4 X .70, THERMOSTAT | 5304514202 | NIA | 11 days | ||
|
SCREW, CONCRETE, 1.75 | 316116000 | NIB | 5 days | ||
|
|
Template, anti-tip | 316541700 | 316112005 | NIC | 5 days |
