Model# FFTR1821QW3

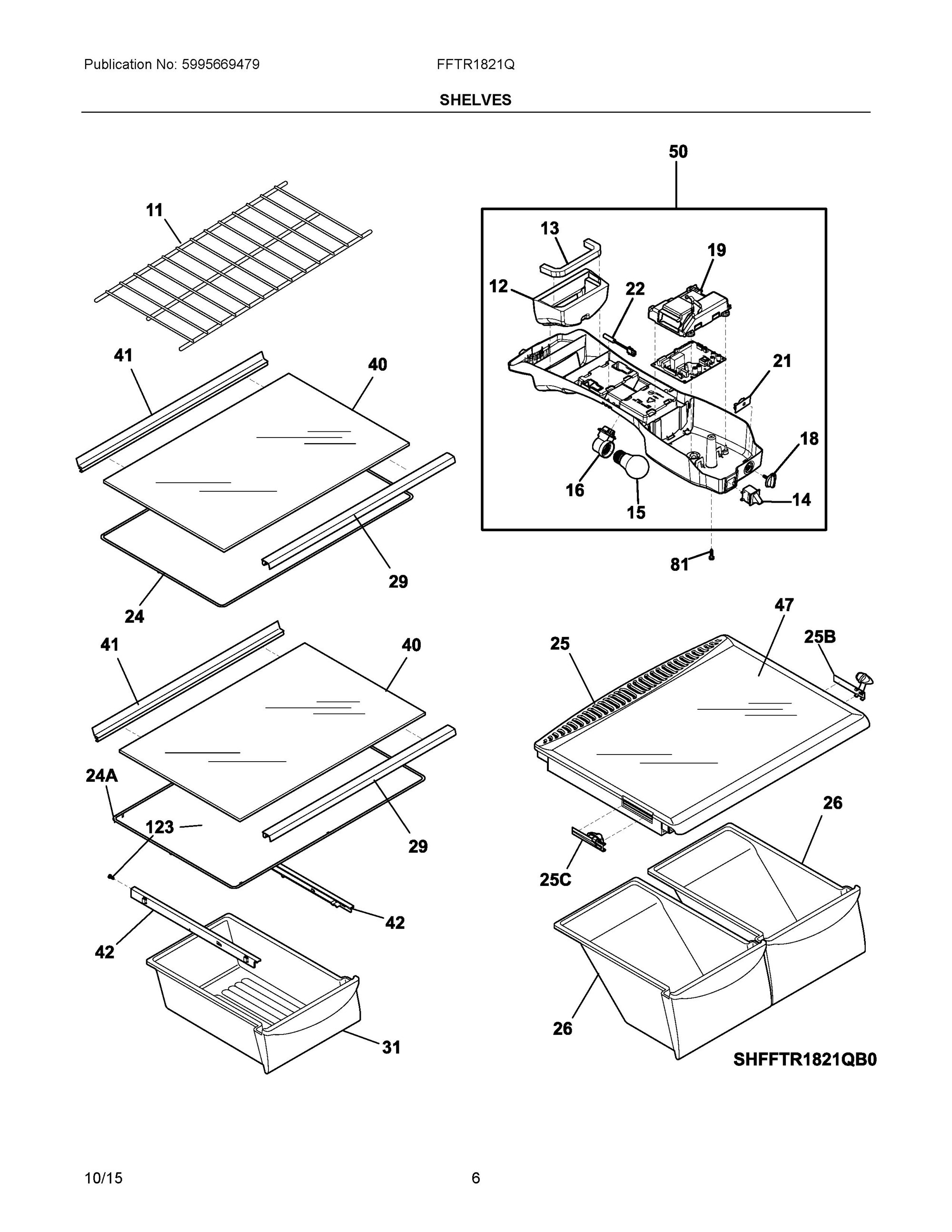

The image and part list below are associated with the component: 04 - SHELVES:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Shelf, freezer | 240358008 | 11 | 3 days | ||
|
DIFFUSER, AIR, CONTROL BOX | 5304498350 | 5303918717 | 12 | 11 days | |
|
Screw, hanger/rlr mtg, 8-10 x 7/16 | 215005101 | 123 | 5 days | ||
|
GASKET, AIR DIFFUSER | 242240602 | 13 | 11 days | ||
|
Switch-light/lamp | 241554901 | 14 | 5 days | ||
|
Light Bulb | 241555401 | 316538904 | 15 | 11 days | |
|
SOCKET, LIGHT | 242081801 | 241559801 | 16 | 5 days | |
|
KNOB, COLD CONTROL | 242217001 | 18 | 11 days | ||
|
HOUSING, BOARD | 5304498427 | A00915101 | 19 | 11 days | |
|
BOARD, USER INTERFACE, POTENTIOMETER | 242231601 | 5304507171 | 21 | 11 days | |
|
SENSOR, TEMPERATURE, 10K, NTC | 240597203 | 240597220 | 22 | 11 days | |
|
Frame, sliding shelf, full width | 240372409 | 24 | 5 days | ||
|
Frame, sliding shelf, full width, w/hanger tabs | 240372410 | 24A | 5 days | ||
|
Cover-crisper pan | 240364787 | 25 | 5 days | ||
|
Control-humidity, RH | 241613501 | 25B | 5 days | ||
|
Control-humidity, LH | 241613502 | 25C | 5 days | ||
|
Pan-crisper, clear, (2), no graphics | 240337103 | 26 | 5 days | ||
|
Trim-shelf, front | 240357704 | 29 | 5 days | ||
|
Pan-meat, w/o graphics, clear | 240530811 | 31 | 5 days | ||
|
GLASS-SHELF, 23.78 | 240350620 | 40 | 5 days | ||
|
Trim-shelf, rear | 240561502 | 41 | 5 days | ||
|
Track, meat pan hanger, LH | 240530601 | 42 | 5 days | ||
|
Track, meat pan hanger, RH | 240530701 | 42A | 3 days | ||
|
INSERT-PAN COVER, 23.82 | 240350608 | 47 | 5 days | ||
|
|
CONTROL BOX, ASSEMBLY, COMPLETE, W/BOARD & HARNS | 5304498355 | 5304507171 | 50 | 11 days | |
|
Screw, hex washer head, 8-15A x 0.625, low profile | 5304455650 | 81 | 5 days | ||
|
ENERGY GUIDE | 241739296 | NI | 11 days | ||
|
Spacer-shelf | 241705801 | NIA | 11 days | ||
|
SHIELD, HEAT | 5304498462 | NIA | 11 days |
