Model# EW23BC71IW0

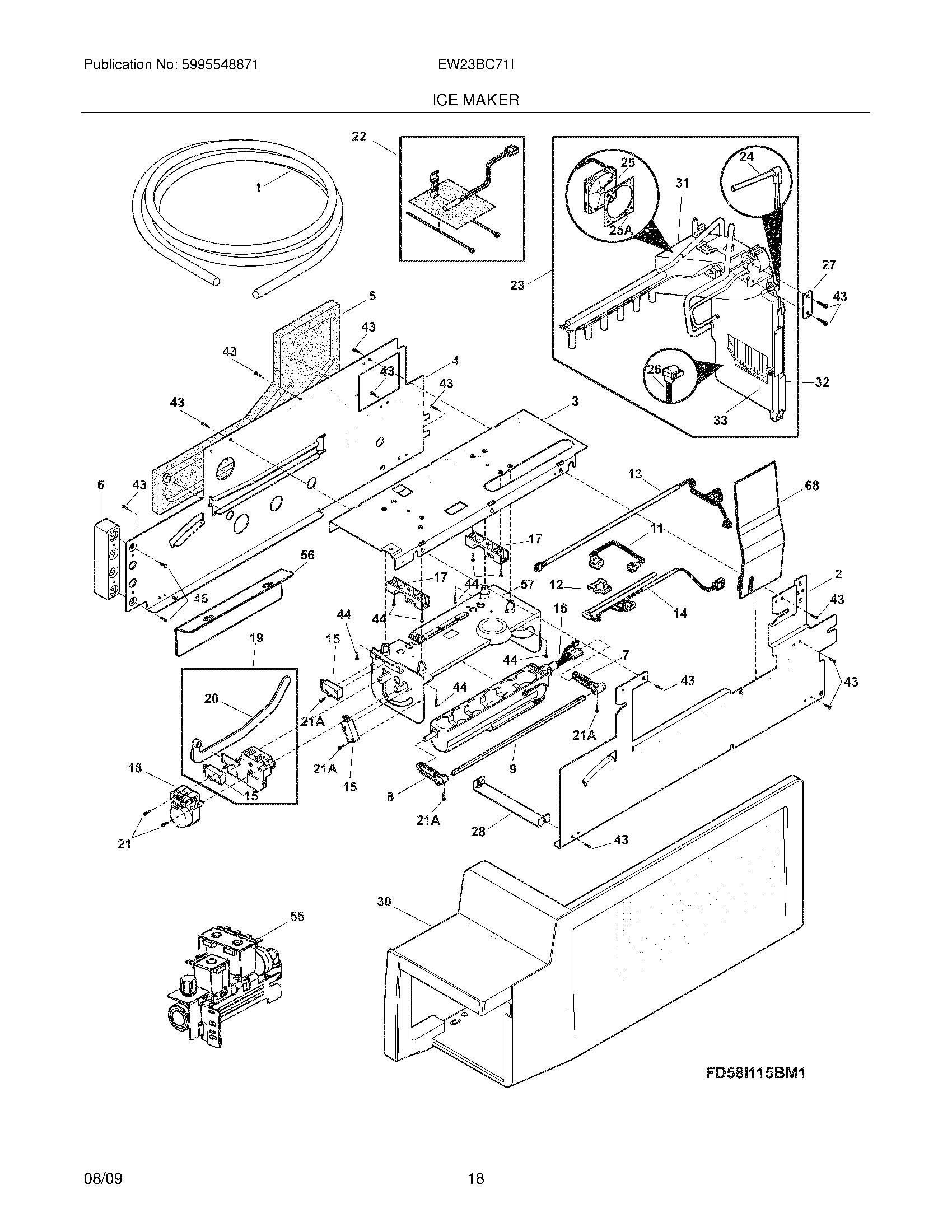

The image and part list below are associated with the component: 17 - ICE MAKER:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Tube-water inlet,59.00`` ,yellow | 7218976426 | 218976426 | 1 | 2 days | |
|
Heater,harvest | 7241983101 | 241983101 | 11 | 2 days | |
|
Clamp,strain relief | 7241997601 | 241997601 | 12 | 2 days | |
|
Harness-wiring,ice maker | 7241921501 | 241921501 | 13 | 2 days | |
|
Heater,harvest ,115 V | 7241983201 | 241983201 | 14 | 2 days | |
|
Switch | 7241870101 | 241870101 | 15 | 2 days | |
|
Tray-ice | 7241827901 | 16 | 11 days | ||
|
Bracket-evap coil | 7241828101 | 241828101 | 17 | 2 days | |
|
Motor-ice maker | 7241817701 | 241817701 | 18 | 2 days | |
|
Shut-off Arm Assembly | 7241939901 | 241939901 | 19 | 2 days | |
|
Frame-icemaker,RH | 7241937302 | 241937302 | 2 | 2 days | |
|
Shut-off Arm | 7241839501 | 241839501 | 20 | 2 days | |
|
Screw | 7242024101 | 242024101 | 21 | 2 days | |
|
Screw | 7242024401 | 242024401 | 21A | 2 days | |
|
Thermistor kit,T-3 suction lin ,icemaker | 75303918416 | 5303918416 | 22 | 2 days | |
|
Evaporator Kit,ice maker | 75303918407 | 5303918407 | 23 | 2 days | |
|
Heater-defrost,icemaker | 7241962501 | 241962501 | 24 | 2 days | |
|
Fan | 7241870801 | 25 | 11 days | ||
|
Gasket-evap fan,icemaker | 7241962301 | 25A | 11 days | ||
|
Thermistor | 7241962601 | 241962601 | 26 | 2 days | |
|
Gasket,ice maker | 7241963401 | 27 | 11 days | ||
|
Brace,icemaker ,front | 7241828701 | 241828701 | 28 | 2 days | |
|
Frame-icemaker,top | 7241828501 | 241828501 | 3 | 2 days | |
|
Cover,icmkr & bucket | 7242016101 | 242016103 | 30 | 2 days | |
|
Shroud-evap fan mtg,ice maker | 7241925102 | 31 | 11 days | ||
|
Cover,rear ,i/mk evaporator | 7241925201 | 32 | 11 days | ||
|
Cover,front ,i/mk evaporator | 7241924701 | 33 | 11 days | ||
|
Frame-icemaker,LH | 7241937502 | 241937502 | 4 | 11 days | |
|
Screw,pan head ,8-32 x 0.250 | 7218359202 | 218359202 | 43 | 2 days | |
|
Screw | 7241870406 | 241870406 | 44 | 2 days | |
|
Screw | 7241641501 | 5304453707 | 45 | 11 days | |
|
Duct-air | 7241870701 | 241870701 | 5 | 2 days | |
|
Valve-water,triple solenoid | 7241734301 | 242252702 | 55 | 2 days | |
|
Rail,ice maker ,RH ,vertical | 7241865501 | 241865501 | 56 | 2 days | |
|
Bracket,evap assembly | 7241816901 | 241816901 | 57 | 2 days | |
|
Spacer,icemaker | 7241954001 | 241954001 | 6 | 2 days | |
|
Deflector-water | 7241969701 | 241969702 | 68 | 2 days | |
|
Bracket,ice tray | 7241939001 | 241939001 | 7 | 2 days | |
|
Bracket,ice tray | 7241827701 | 241827701 | 8 | 2 days | |
|
Shaft,motor ,icemaker | 7241841701 | 241841701 | 9 | 2 days | |
|
Screw | 7241870304 | NI | 11 days | ||
|
Screw | 7241641502 | 241641502 | NI | 2 days | |
|
Screw-shoulder | 7240363602 | 240363602 | NI | 2 days | |
|
Connector-water,straight | 7240352102 | 241806601 | NI | - |
|
|
