Model# EPWD15IW2

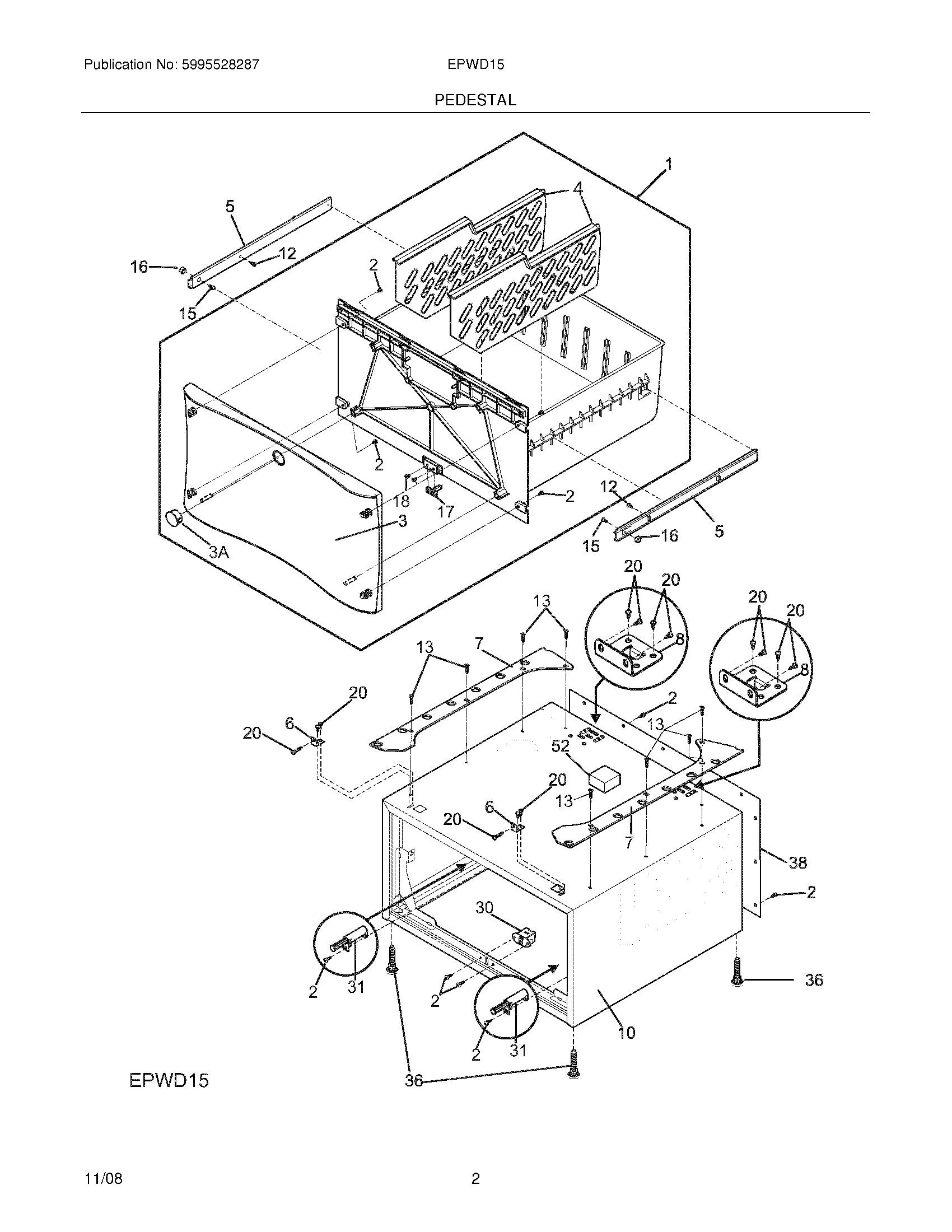

The image and part list below are associated with the component: 03 - PEDESTAL:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Drawer,pedestal ,white ,includes 3,4 | 7134862400 | 134862400 | 1 | 3 days | |
|
Cabinet,white | 7134797110 | 10 | 11 days | ||
|
Screw,sheet metal ,6-20 x 0.375 ,(2) | 7134477400 | 5308014215 | 12 | 3 days | |
|
Screw,10-16 x 0.750 | 7131302901 | 13 | 11 days | ||
|
Screw,machine ,6-32 x 0.625 ,(2) | 7134509900 | 134509900 | 15 | - |
|
|
Nut,locking ,6-32 ,(2) ,nylon insert | 7134510400 | 134510400 | 16 | 3 days | |
|
Strike,drawer | 7137006900 | 137006900 | 17 | 3 days | |
|
Screw,quad pan head ,10-16 x 0.312 | 7131696300 | 18 | 11 days | ||
|
Screw,pan head ,8-18B x 0.31 | 7131168200 | 131168200 | 2 | 3 days | |
|
Screw,10-16 x 0.500 ,(28) | 7134549700 | 5304515677 | 20 | 11 days | |
|
Panel,front ,white | 7134990500 | 134990500 | 3 | 3 days | |
|
Latch,drawer | 7137006200 | 137006200 | 30 | 3 days | |
|
Actuator,drawer | 7137006500 | 137006500 | 31 | 3 days | |
|
Leveling Leg Assy,bolt,pad & nut | 7131841600 | 36 | 11 days | ||
|
Panel,back | 7134802700 | 134802700 | 38 | 11 days | |
|
Button,drawer front | 7134998500 | 134998500 | 3A | 11 days | |
|
Divider,drawer ,inner | 7134442340 | 5304533675 | 4 | 11 days | |
|
Slide,drawer track ,(2) | 7134443700 | 134443700 | 5 | 3 days | |
|
Dampener,vibration ,foam | 7131931202 | 131931202 | 52 | 3 days | |
|
Bracket,front | 7134830200 | 134830200 | 6 | 3 days | |
|
Spacer,white | 7134840500 | 134840500 | 7 | 11 days | |
|
Bracket,rear | 7134830000 | 134830000 | 8 | 3 days |
