Model# EIMGD60JIW2

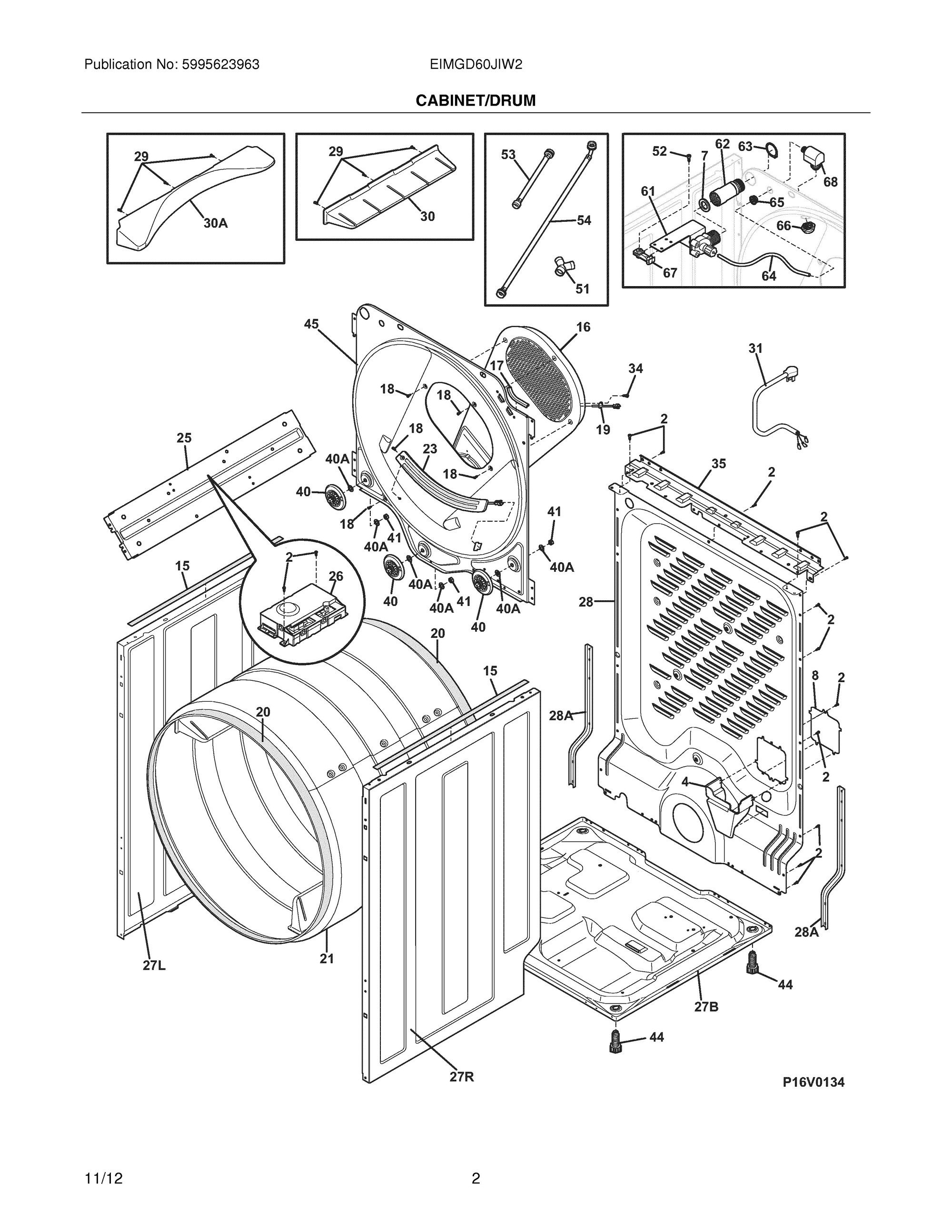

The image and part list below are associated with the component: 03 - CABINET/DRUM:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Cushion,vibration ,top panel | 137031800 | 15 | 2 days | ||
|
Duct,heat ,rear | 137199820 | 5304509715 | 16 | 11 days | |
|
Protector,edge ,right top front ,85.0+/-1.5 | 134792900 | 17 | 2 days | ||
|
Screw,10-16AB x 0.375 | 131477000 | 131168200 | 18 | - |
|
|
Thermistor,inlet | 134711200 | 19 | 2 days | ||
|
|
Screw,pan head ,8-18B x 0.31 | 131168200 | 2 | - |
|
|
|
Seal,felt ,drum | 134705900 | 20 | 2 days | ||
|
Drum,dryer ,assembly 38`` | 134708210 | 137610810 | 21 | 2 days | |
|
Sensor-moisture,assembly | 134786100 | 23 | 2 days | ||
|
Bracket,mounting ,main control bx | 137297500 | 137567001 | 25 | 11 days | |
|
Control Board,printed circuit ,with housing | 137260130 | 809160305 | 26 | 11 days | |
|
Base,dryer | 134690200 | 134690203 | 27B | 2 days | |
|
Panel,left side ,white | 134712610 | 27L | 5 days | ||
|
Panel,right side ,white | 134712710 | 27R | 2 days | ||
|
Panel,backsheet | 137506513 | 137560425 | 28 | 11 days | |
|
Bracket,reinforcement ,backsheet | 137029800 | 137029801 | 28A | 11 days | |
|
Screw,No.8 pan head ,10-10B x 0.500 ,cr/sq drive | 131205100 | 29 | 2 days | ||
|
Vane,drum | 137033700 | 137610600 | 30 | - |
|
|
Vane,mixing ,smooth | 137028500 | 5304531775 | 30A | 11 days | |
|
Power Cord,electric svce | 134501000 | 5304505407 | 31 | 11 days | |
|
Screw, pan head, 8-18AB x 0.375 | 131243700 | 34 | 2 days | ||
|
Bracket,top panel mtg. ,rear | 134713100 | 35 | 2 days | ||
|
Bracket,main ,terminal | 134792100 | 4 | 2 days | ||
|
Roller,wheel ,complete asmy | 134715900 | 5304523155 | 40 | 11 days | |
|
Washer,flat | 134716700 | 40A | 2 days | ||
|
Nut,3/8-16 | 134716800 | 41 | 2 days | ||
|
Leveling Leg,screw | 134158000 | 216396900 | 44 | 2 days | |
|
Bulkhead,panel ,rear | 134712813 | 134712823 | 45 | 2 days | |
|
FITTING,``Y`` HOSE,ADAPTER . | 137016710 | 5304520414 | 51 | 11 days | |
|
Screw,10-16AB x 0.625 | 131202300 | 52 | 2 days | ||
|
Hose,water inlet ,12No. | 137471800 | 53 | 2 days | ||
|
Hose, Inlet 48`` Subassembly | 137471700 | 5304503984 | 54 | 11 days | |
|
Valve,water ,mister | 137016600 | 218470300 | 61 | 2 days | |
|
Adapter,mist hose | 137474500 | 62 | 2 days | ||
|
Ring,retaining ,hose adapter | 137016500 | 63 | 11 days | ||
|
Tube, water valve to,,valve to IM | 137509000 | 64 | 2 days | ||
|
Grommet,misting tube | 137017200 | 65 | 2 days | ||
|
Nut,nozzle | 137017300 | 5304529773 | 66 | 11 days | |
|
Clip,mounting ,water valve | 137017400 | 67 | 2 days | ||
|
Adapter,water nozzle ,complete | 137030100 | 5304529773 | 68 | 11 days | |
|
WASHER-INLET HOSE | 5303161296 | 7 | 2 days | ||
|
Cover,terminal block | 134694400 | 8 | 2 days | ||
|
ADHESIVE, HIGH TEMP | 5308027429 | NI | 2 days | ||
|
Strain relief,120 ,pwr cord | 134790900 | 5304520095 | NI | 11 days | |
|
Damper,sound | 134926600 | NI | 2 days | ||
|
Retainer,roller wheel ,assembly | 134716200 | NI | 2 days | ||
|
Wiring Harness,moisture sensor | 134930800 | NI | 2 days | ||
|
Brace,side panel | 137240500 | 137240501 | NI | 11 days | |
|
Protector, Edge,side brace | 137360810 | NI | 11 days |
