Model# DW245UW

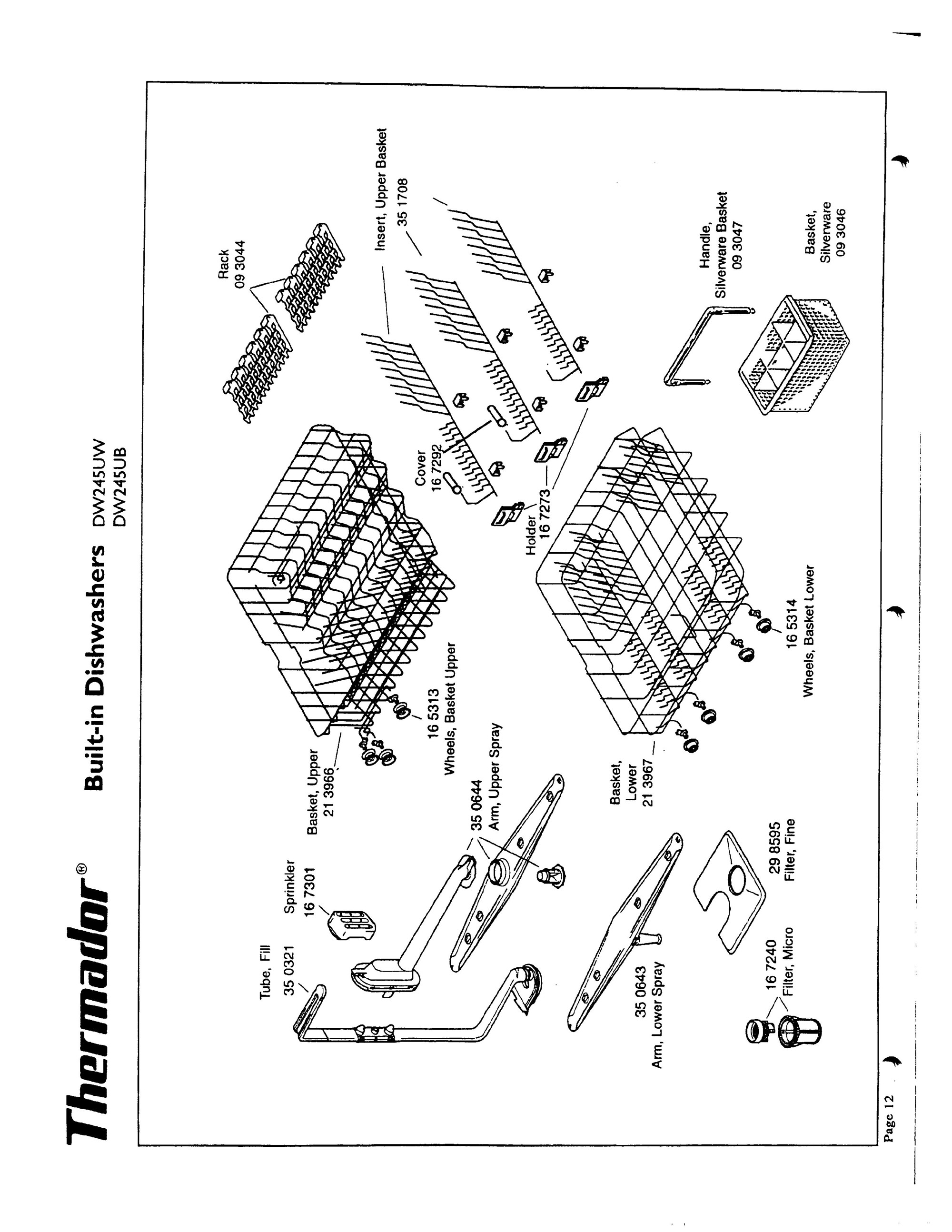

The image and part list below are associated with the component: 12 - RACKS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Feed tube | 350321 | 00350321 | 1 | 4 days | |
|
Wheels, lower rack | 165314 | 00165314 | 10 | 2 days | |
|
Silverware basket, with handle & cover, gray, lower rack | 093046 | 00093046 | 11 | 2 days | |
|
|
NLA (handle, silverware basket - see 093046 basket | 093047 | 00093046 | 12 | 2 days | |
|
Latch | 167273 | 00167273 | 13 | 2 days | |
|
NLA | 167292 | 00167292 | 14 | 2 days | |
|
Flip tine, rear, SHU 43/53/68 | 351708 | 00351708 | 15 | 11 days | |
|
Cup rack, upper/lower rack | 093044 | 00093044 | 16 | 2 days | |
|
Tall item sprinkler head, SHU | 167301 | 00167301 | 2 | 2 days | |
|
Upper rack, non-adjustable | 213966 | 00249277 | 3 | 4 days | |
|
Wheels, upper rack | 165313 | 4 | 11 days | ||
|
Spray arm, upper, straight, Thermador d/w | 350644 | 00298594 | 5 | 2 days | |
|
Lower rack, with 3 flip tines, white -- use 434649 platinum rack | 213967 | 00249276 | 6 | 2 days | |
|
NLA (Spray arm, lower, straight, Thermador d/w) | 350643 | 00369656 | 7 | 2 days | |
|
Filter basket assembly, SHU UC/06 | 167240 | 00480934 | 8 | 2 days | |
|
|
Filter screen, SHU UC/06 | 298595 | 00480934 | 9 | 2 days |
