Model# DTS18ZBRJRWW

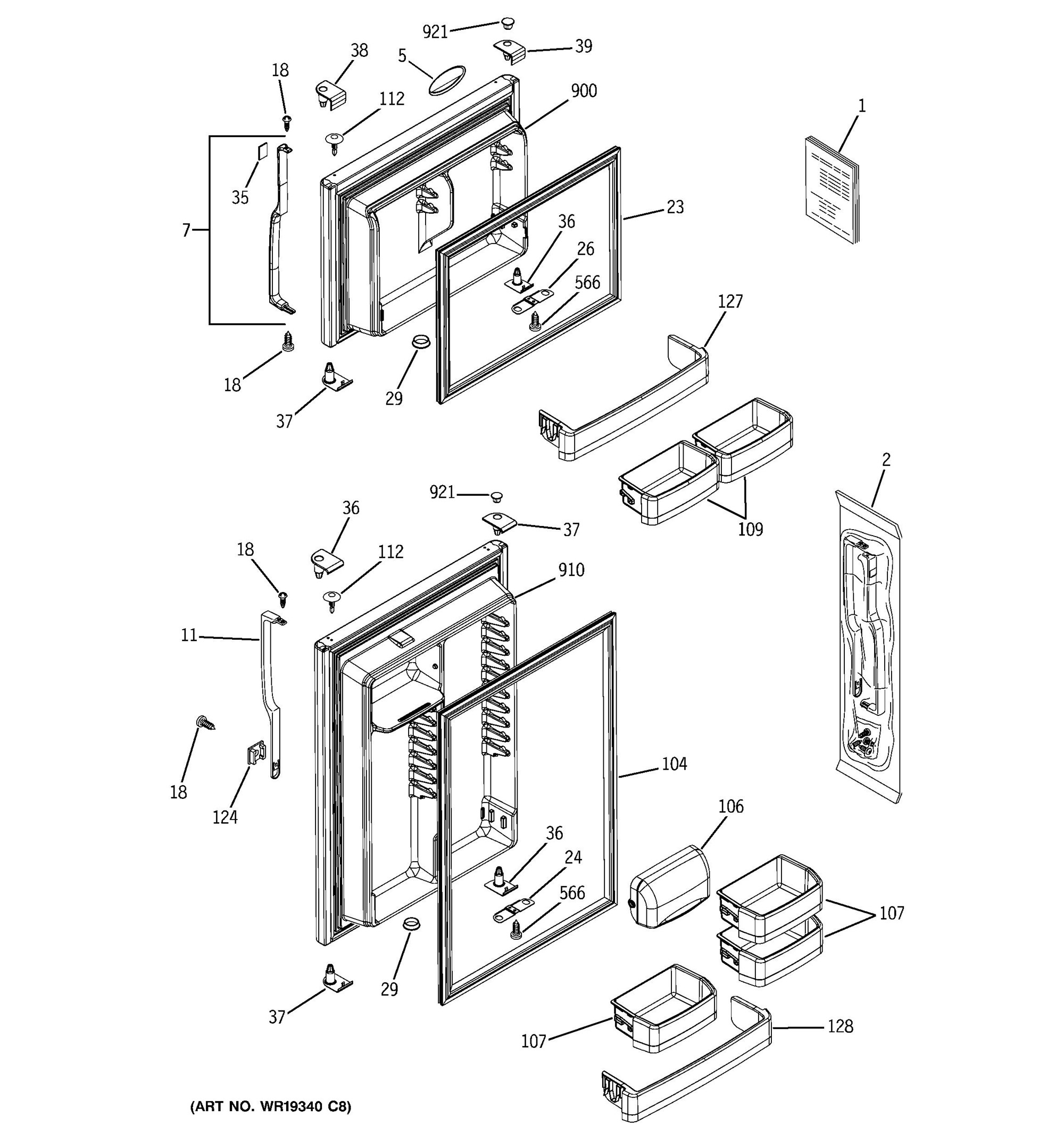

The image and part list below are associated with the component: DOORS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PM MINI MANUAL WIRING | 31-51655 | 1 | 11 days | ||
|
PM GUIDE OWNERS | 49-60396 | 1 | 11 days | ||
|
GASKET DOOR FF | WR24X10186 | 104 | 5 days | ||
|
DOOR DIARY CLEAR | WR22X10024 | WR22X28065 | 106 | 11 days | |
|
MODULAR DOOR BIN FF | WR71X10267 | WR71X10854 | 107 | 5 days | |
|
MODULAR DOOR BIN FZ | WR71X10268 | WR71X10855 | 109 | 5 days | |
|
HANDLE DOOR FF | WR12X10770 | WR12X10760 | 11 | 5 days | |
|
PLUG DOOR RVSBL WH | WR02X8693 | WR01X21159 | 112 | 11 days | |
|
PLUG BUTTON HANDLE WH | WR12X10129 | 124 | 5 days | ||
|
SHELF FRONT FZ | WR71X10270 | 127 | 5 days | ||
|
|
SHELF FRONT FF | WR71X10561 | WR71X10270 | 128 | 5 days | |
|
SCR 10-16AB FWR 3/4 SS | WR01X1726 | WR1X1726D | 18 | 5 days | |
|
|
PK HANDLE SMALL ASM | WR12X10760 | 2 | 5 days | ||
|
GASKET DOOR FZ | WR24X10187 | 23 | 5 days | ||
|
STOP DOOR FF | WR02X10740 | 24 | 5 days | ||
|
STOP DOOR FZ WH | WR02X10767 | 26 | 5 days | ||
|
PLUG BUTTON INSERT WH | WR02X8087 | WR2X8087 | 29 | 5 days | |
|
LENS NAMEPLATE WH | WR04X10028 | 35 | 5 days | ||
|
CAP DOOR CORNER WH | WR02X11776 | 36 | 5 days | ||
|
CAP DOOR CORNER WH | WR02X11777 | 37 | 11 days | ||
|
CAP DOOR CORNER WH | WR02X11778 | 38 | 11 days | ||
|
CAP DOOR CORNER WH | WR02X11779 | 39 | 11 days | ||
|
NAMEPLATE | WR04X10145 | 5 | 11 days | ||
|
SCR 10-16 1/2 PH | WR01X1728 | 566 | 11 days | ||
|
|
HANDLE ASM FZ | WR12X10610 | WR12X10760 | 7 | 5 days | |
|
DOOR FOAM ASM FZ WH | WR78X10382 | 900 | 11 days | ||
|
DOOR FOAM ASM FF WH | WR78X10383 | 910 | 5 days | ||
|
PLUG DOOR THIMBLE WH | WR02X10724 | 921 | 5 days |
