Model# DSHS9NGYACSS

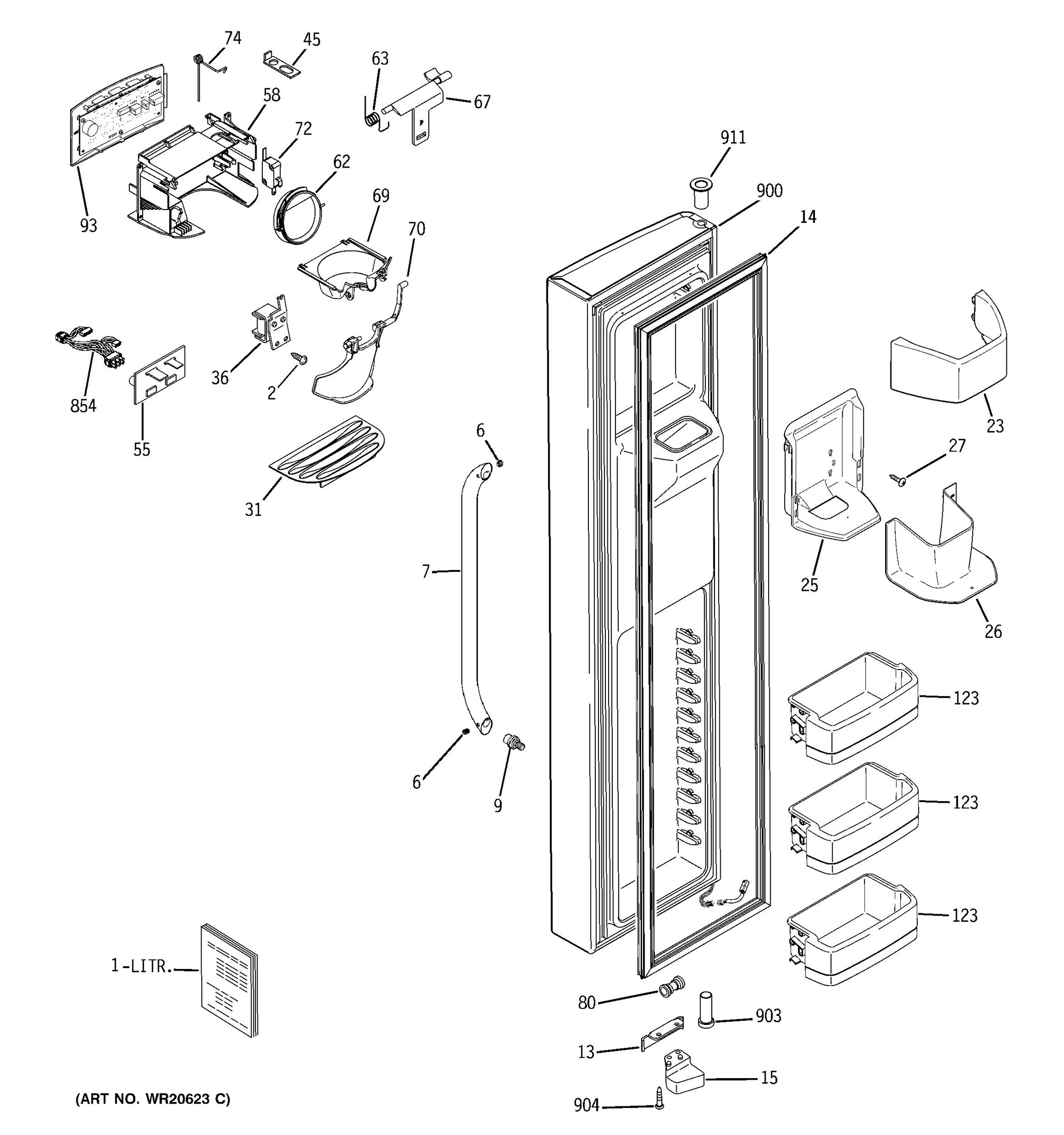

The image and part list below are associated with the component: FREEZER DOOR:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PM MINI MANUAL WIRING | 31-51779 | 1 | 11 days | ||
|
PM GUIDE OWNERS | 49-60587 | 1 | 11 days | ||
|
MODULE SHELF FZ | WR71X10246 | 123 | 5 days | ||
|
STOP DOOR BK | WR02X10782 | 13 | 5 days | ||
|
GASKET DOOR FZ WH | WR24X10156 | 14 | 11 days | ||
|
CAM CLOSURE FZ BK | WR02X10780 | 15 | 5 days | ||
|
SCR 4-10 PL PNP 3/4 SS | WR02X12257 | 2 | - |
|
|
|
MODULE FZ UPPER | WR71X10509 | 23 | 5 days | ||
|
MODULE FZ SEAT | WR71X10510 | 25 | 11 days | ||
|
GUIDE ICE | WR71X10511 | 26 | 11 days | ||
|
SCR 8-18 AB FLP 7/8 S | WR01X10857 | 27 | 11 days | ||
|
GRILL RECESS | WR17X12777 | WR17X12864 | 31 | 5 days | |
|
SOLENOID ASM | WR62X10055 | 36 | 5 days | ||
|
RETAINER RECESS DOOR | WR02X8818 | WR2X8818 | 45 | 5 days | |
|
BOARD ASM DISP LIGHTING | WR55X10899 | 55 | 5 days | ||
|
HOUSING SHIELD DISP | WR17X12500 | WR17X34385 | 58 | 11 days | |
|
SET SCREW | WR01X10450 | 6 | 5 days | ||
|
DOOR RECESS ASM | WR17X11653 | 62 | 5 days | ||
|
SPRING RECESS DOOR | WR02X10585 | 63 | 5 days | ||
|
CRANK DOOR RECESS | WR17X10706 | 67 | 5 days | ||
|
FUNNEL ICE DISP | WR17X12120 | 69 | 5 days | ||
|
TUBULUR HANDLE ASM | WR12X10855 | 7 | 5 days | ||
|
PADDLE ICE DISP | WR17X12778 | 70 | 11 days | ||
|
SWITCH | WR23X10224 | WR23X10783 | 72 | 5 days | |
|
SPRING TORSION | WR02X12256 | 74 | 5 days | ||
|
UNION CONNECTOR | WR02X11330 | 80 | 5 days | ||
|
HARNESS RECESS DISPENSOR | WR23X10665 | 854 | 11 days | ||
|
FASTENER HANDLE SS | WR02X12390 | WR02X12800 | 9 | 5 days | |
|
DOOR FOAM ASM FZ | WR78X12484 | WR78X21426 | 900 | 11 days | |
|
THIMBLE DOOR BTM FZ BK | WR01X10234 | 903 | 5 days | ||
|
SCR 10-16 | WR01X10582 | WR01X10611 | 904 | 5 days | |
|
THIMBLE DOOR TOP BK | WR01X10233 | WR01X10956 | 911 | 11 days | |
|
INTERFACE DISPENSER ASM | WR55X10976 | 93 | 5 days |
