Model# DFF9109W

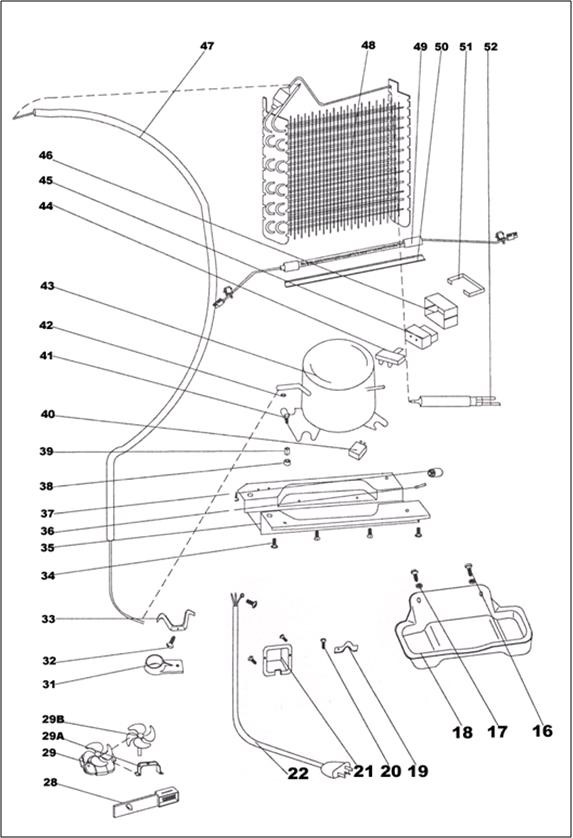

The image and part list below are associated with the component: Section 1 Image 3:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
CAN SUPPORT BAR | dff9100.01.c | 2 days | |||
|
HINGE BUSHING | dff9100.13 | 2 days | |||
|
FREEZER DOOR | dff9100.01 | 1 | 2 days | ||
|
ICE CUBE TRAY | dff9100.10 | 10 | 11 days | ||
|
AIR OUTLET FOAM GUARD | dff9100.11 | 11 | 2 days | ||
|
|
HINGE BUSHING | dff9100.13 | 13 | 2 days | ||
|
LOWER HINGE | dff9100.14 | 14 | 2 days | ||
|
ADJUSTABLE FOOT | dar1102.24 | 15 | 2 days | ||
|
LOAD WIRE CLAMP | dff9100.19 | 19 | 11 days | ||
|
FREEZER DOOR GASKET | dff9100.01.b | 1.05.35.03.056 | 1b | 2 days | |
|
DOOR HINGE PLUG | dff9100.01.d | 1d | 11 days | ||
|
REFRIGERATOR DOOR | dff9100.02 | 1.05.35.03.520 | 2 | 2 days | |
|
SPLIC BOX | dff9100.21 | 21 | 2 days | ||
|
POWER SUPPLY CORD | dff9100.22 | 22 | 11 days | ||
|
CRISPER | dff9100.23 | 23 | 2 days | ||
|
CRISPER COVER | dff9100.24 | 24 | 2 days | ||
|
HALF SHELF | dff9100.25.a | 25a | 11 days | ||
|
FULL SHELF | dff9100.25.b | 25b | 11 days | ||
|
SHELF TRIM | dff9100.25.c | 25c | 11 days | ||
|
AIR OUTLET OUTSIDE PLATE | dff9100.26 | 26 | 2 days | ||
|
AIR OUTLET INSIDE PLATE | dff9100.27 | 27 | 2 days | ||
|
ADJUSTABLE WIND PLATE | dff9100.28 | 28 | 2 days | ||
|
FAN MOTOR | dff9100.29 | 1.01.06.01.007RASS | 29 | 11 days | |
|
FAN MOTOR BRACKET | dff9100.29.a | 29a | 2 days | ||
|
FAN BLADE | dff9100.29.b | 29b | 2 days | ||
|
DOOR HINGE PLUG | dff9100.02.a | 2a | 2 days | ||
|
REFRIGERATOR DOOR GASKET | dff9100.02.c | 2c | 2 days | ||
|
CLEAR DOOR BIN | dff9100.02.d | 2d | 2 days | ||
|
BUTTER DOOR BUSHING | dff9100.02.e | 2e | 2 days | ||
|
BUSHING CLAMP | dff9100.02.f | 2f | 2 days | ||
|
BUTTER DOOR | dff9100.02.g | 2g | 2 days | ||
|
CAN SUPPORT (CHUTE BAR) | dff9100.02.h | 2h | - |
|
|
|
BOTTLE SUPPORT BAR | dff9100.02.i | 2i | 2 days | ||
|
ONE GALLON SUPPORT BAR | dff9100.02.j | 2j | 2 days | ||
|
DOOR SUPPORT PLATE | dar1102.09 | 2m | 11 days | ||
|
BOTTOM HINGE SUPPORT PLATE | dar1102.10 | 2n | 2 days | ||
|
HINGE STAND | dff9100.02.o | 2o | 11 days | ||
|
MIDDLE HINGE | dff9100.03 | 3 | 2 days | ||
|
CONDENSER ASSY | dff9100.30 | 30 | 2 days | ||
|
BASKET | dff9100.31 | 31 | 11 days | ||
|
CONDENSER BRACKET | dar1102.36 | 33 | 11 days | ||
|
COMPRESSOR SUPPORT | dff9100.35 | 35 | 11 days | ||
|
AXLE | dff9100.36 | 36 | 11 days | ||
|
WHEEL | dff9100.37 | 37 | 2 days | ||
|
COMPRESSOR BOLE WASHER | dff9100.38 | 38 | 11 days | ||
|
RUBBER GROMMET | dff9100.39 | 39 | 2 days | ||
|
TABLE TOP | dar1102.11w | 4 | 2 days | ||
|
CAPACITOR | dff9100.40 | 40 | 2 days | ||
|
COMPRESSOR | 90006-080 | 43 | 2 days | ||
|
OVERLOAD PROLECTOR | dff9100.44 | 44 | 2 days | ||
|
PTC COVER | dff9100.45 | 45 | 2 days | ||
|
PTC STARTER | dff9100.46 | 46 | 2 days | ||
|
HEAR PRESERVATION TUBE | 90057-001 | 47 | 2 days | ||
|
EVAPORATOR | dff9100.48 | 1.05.20.01.012 | 48 | - |
|
|
DEFROST HEATER | dff9100.49 | 1.01.07.02.001 | 49 | 2 days | |
|
DEFROST HEATER LEFT SUPPORT CLIP | dff9100.49ls | 49a | 11 days | ||
|
DEFROST HEATER | dff9100.49rs | 49b | 2 days | ||
|
AIR OUTLET PLUG | dff9100.05 | 5 | 11 days | ||
|
DEFROST HEATER CROSSPEICE | dff9100.50 | 50 | - |
|
|
|
BRACKET - DRAIN PAN | not used | 51 | 11 days | ||
|
DRIER | dff9100.52 | 52 | 2 days | ||
|
DEFROST THERMOSTAT ASSEMBLY | dff9100.53 | 53 | 2 days | ||
|
AIR OUTLET PLATE | dff9100.05.a | 5a | 2 days | ||
|
TABLE TOP SUPPORT PLATE | dff9100.07 | 7 | 2 days | ||
|
PLUG | dff9100.08 | 8 | 2 days | ||
|
AIR OUTLET | dff9100.09 | 1.03.02.01.012 | 9 | 2 days | |
|
AIR OUTLET FOAM GUARD | dff9100.09.a | 9a | 11 days | ||
|
LAMP COVER | dff9100.09.b | 1.02.11.03.015 | 9b | 2 days | |
|
LAMP SWITCH | dff9100.09.c | 9c | 2 days | ||
|
|
THERMOSTAT | dff9100.09.d | 1.03.02.01.012 | 9d | 2 days | |
|
THERMOSTAT KNOB | dff9100.09.e | 9e | 2 days | ||
|
REFLECTOR PLATE | dff9100.09.f | 9f | 11 days | ||
|
LAMP | dar1102.19 | 9g | 11 days | ||
|
LIGHT SOCKET | dff9100.09.h | 9h | 2 days | ||
|
DEFORST TIMER | dff9100.09.i | 1.01.07.03.001 | 9i | 2 days |
