Model# DER30050W

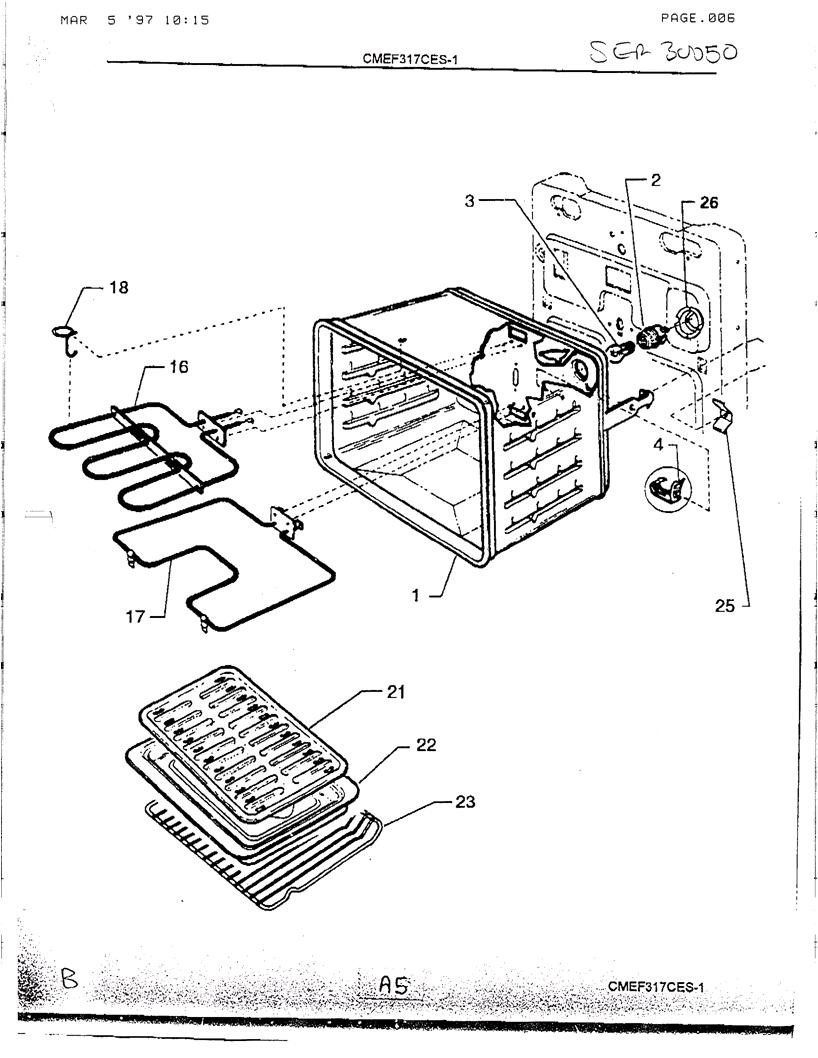

The image and part list below are associated with the component: Section 1 Image 2:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
OVEN MOUNTING PLATE | 210280102p | 11 days | |||
|
LEFT ROD | 203953-1060 | 11 days | |||
|
211766-101p | 11 days | ||||
|
LAMP HOLDER - LH | 202199-1020 | 11 days | |||
|
SIDE PANEL | 211598-1101 | a01 | 11 days | ||
|
RUBBER SPACER | 202688-1010 | a06 | 11 days | ||
|
TEE' NUT | 73217-1310 | a07 | 11 days | ||
|
LEG LEVELER | 202860-1010 | a08 | 11 days | ||
|
COVER INSULATION | 318126500 | a09 | 11 days | ||
|
ADAPTER ASSEMBLY | 203849-1010 | a10 | 11 days | ||
|
VENT TUBE | 203850-1010 | a11 | 11 days | ||
|
MAIN BACK | 318095000 | a12 | 11 days | ||
|
INSULATION | 201164-1550 | a13 | 11 days | ||
|
WIRE TIE | 73211-1430 | a14 | 11 days | ||
|
INSULATION | 201164-2630 | a15 | 11 days | ||
|
SUPPORT INSULATION | 21159-101p | a16 | 11 days | ||
|
FRONT PANEL & WHEELS ASSEMBLY | 318123102 | a17 | 11 days | ||
|
HINGE RECEPTACLE | 210052-1010 | a23 | 11 days | ||
|
DRAWER CHANNEL | 210091-103p | a24 | 11 days | ||
|
DRAWER CHANNEL | 210091-104p | a25 | 11 days | ||
|
DECORATIVE PLATE | 203954-101p | a28 | 11 days | ||
|
GASKET | 211816-1020 | a30 | 11 days | ||
|
STRIKER | 732152270 | a35 | 11 days | ||
|
NYLON ROLLER KIT | 901154-9010 | a36 | 11 days | ||
|
OVEN ASSEMBLY | 318089600 | b01 | 11 days | ||
|
RECEPTACLE | 66220010001 | b02 | 11 days | ||
|
BULB | 73213-1040 | b03 | 11 days | ||
|
THERMOSTAT BULB | 14500290001 | b04 | 11 days | ||
|
BROIL ELEMENT | 211806-1020 | b16 | 11 days | ||
|
BAKE ELEMENT | 211818-1040 | b17 | 11 days | ||
|
ELEMENT SUPPORT | 210006-1020 | b18 | 11 days | ||
|
BROILER GRILL | 211960-1030 | b21 | 11 days | ||
|
BROILER PAN | 211989-1020 | b22 | 11 days | ||
|
OVEN SHELF | 205604-1170 | b23 | 11 days | ||
|
SPRING | 221047-1010 | b25 | 11 days | ||
|
OVEN LIGHT HOUSING | 22101-1010 | b26 | 11 days | ||
|
MAIN TOP | 318065500 | c01 | 11 days | ||
|
ELEMENT ASSEMBLY - 1150 watt | 211762-1020 | c02 | 11 days | ||
|
ELEMENT ASSEMBLY - 1400 watt | 211762-1030 | c03 | 11 days | ||
|
ELEMENT ASSEMBLY - 1950 watt | 211762-1040 | c04 | 11 days | ||
|
ELEMENT ASSEMBLY - 2200 watt | 211762-1050 | c05 | 11 days | ||
|
CENTER TRIM | 204297-1060 | c06 | 11 days | ||
|
PAN | 318067200 | c07 | 11 days | ||
|
PAN | 318067201 | c08 | 11 days | ||
|
RING | 204514-1030 | c09 | 11 days | ||
|
RING | 204514-1040 | c10 | 11 days | ||
|
BLOCK-ELEMENT | 203618-1010 | c12 | 11 days | ||
|
SUPPORT ASSEMBLY | 204656-1020 | c13 | 11 days | ||
|
RIGHT ROD | 203953-1050 | c15 | 11 days | ||
|
CHANNEL-STIFFENER | 210110-1031 | c17 | 11 days | ||
|
HINGE | 7201120001 | c18 | 11 days | ||
|
CATCH | 73215-2260 | c20 | 11 days | ||
|
PANEL | 318006218 | d01 | 11 days | ||
|
END CAP BRACKET - RH | 210120-9030 | d02 | 11 days | ||
|
END CAP BRACKET - LH | 210120-9040 | d03 | 11 days | ||
|
BACKSPLASH END - RH | 211940-1011 | d04 | 11 days | ||
|
BACKSPLASH END - LH | 211940-1021 | d05 | 11 days | ||
|
FUSE HOLDER ASSEMBLY | 318115600 | d06 | 11 days | ||
|
FUSE HOLDER MOUNTING CLIP | 73217-1380 | d06a | 11 days | ||
|
LAMP HOLDER - RH | 202199-1010 | d10 | 11 days | ||
|
STARTER SOCKET | 202521-1010 | d11 | 11 days | ||
|
STARTER | 73213-1480 | d12 | 11 days | ||
|
TIMER | 318004701 | d14 | 11 days | ||
|
A/C OUTLET | 203022-1181 | d15 | 11 days | ||
|
FLUORESCENT LAMP | 73213-1580 | d23 | 11 days | ||
|
BACKSPLASH TOP | 223014-1021 | d25 | 11 days | ||
|
CROSSOVER LEAD | 203793-1020 | d31 | 11 days | ||
|
KNOB | 211574-1260 | d34 | 11 days | ||
|
PILOT LIGHT | 204708-1160 | d36 | 11 days | ||
|
PILOT LIGHT | 204794-1110 | d37 | 11 days | ||
|
OVEN CONTROL | 210027-1010 | d39 | 11 days | ||
|
SELECTOR | 210056-1010 | d40 | 11 days | ||
|
INFINITE SWITCH | 318120500 | d41 | 11 days | ||
|
SWITCH | 69500360004 | d44 | 11 days | ||
|
OUTLET SUPPORT | 221007-101p | d50 | 11 days | ||
|
SHIELD PLATE | 211941-1010 | d51 | 11 days | ||
|
NEUTRAL BOARD ASSEMBLY | 318111200 | d52 | 11 days | ||
|
INNER DOOR | 318112902 | e01 | 11 days | ||
|
GASKET | 203466-1050 | e04 | 11 days | ||
|
HINGE ASSEMBLY | 211817-1020 | e06 | 11 days | ||
|
GLASS FRAME | 211811-1010 | e08 | 11 days | ||
|
DOOR GLASS - INNER | 210047-1020 | e09 | 11 days | ||
|
DEFLECTOR | 211812-1030 | e11 | 11 days | ||
|
DOOR GLASS - OUTER | 210051-1171 | e17 | 11 days | ||
|
UPPER DOOR TRIM | 318049002 | e18 | 11 days | ||
|
HANDLE SUPPORT BRACKET | 318043100 | e19 | 11 days | ||
|
DOOR HANDLE | 223206-1011 | e20 | 11 days | ||
|
DOOR TRIM - SIDE | 318049202 | e26 | 11 days | ||
|
DOOR TRIM - BOTTOM | 223216-1011 | e27 | 11 days | ||
|
GLASS RETAINER BAR | 210260-101p | e28 | 11 days | ||
|
GLASS TRIM | 318028900 | e29 | 11 days | ||
|
DRAWER BODY | 318107100 | f01 | 11 days | ||
|
BRACKET | 203856-102p | f02 | 11 days | ||
|
DRAWER FRONT | 223203-1011 | f04 | 11 days | ||
|
SAFETY THERMOSTAT | 204810-1010 | g02 | 11 days | ||
|
POWER CORD | 318113101 | g14 | 11 days | ||
|
BACK COVER | 318086502 | g19 | 11 days | ||
|
MOUNTING BRACKET | 221084-101p | g21 | 11 days | ||
|
MAGNET & SPRING ASSEMBLY | 221083-1010 | g22 | 11 days |
