Model# DDT700SGN4WW

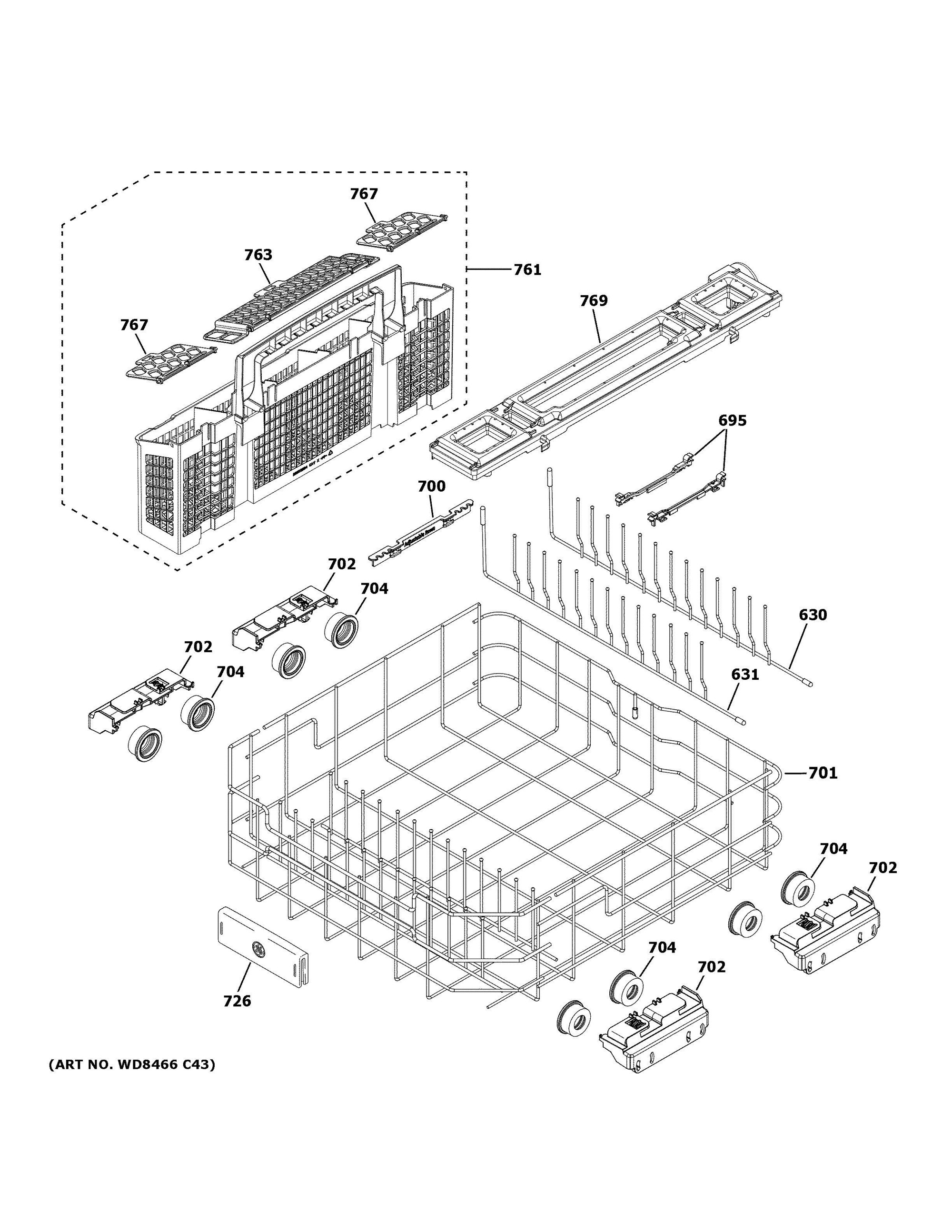

The image and part list below are associated with the component: LOWER RACK ASSEMBLY:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
COATED FOLD DOWN TINE | WD28X25581 | 630 | 11 days | ||
|
COATED FOLD DOWN TINE | WD28X25582 | 631 | 11 days | ||
|
CLIP LOWER RACK | WD12X20171 | 695 | 11 days | ||
|
INDEXER | WD28X20166 | 700 | 11 days | ||
|
COATED LOWER RACK ASM | WD28X25580 | WD28X34745 | 701 | 11 days | |
|
ROLLER CARRIER | WD12X28078 | WD01X35298 | 702 | 11 days | |
|
LOWER RACK ROLLER | WD12X26146 | 704 | 11 days | ||
|
RACK HANDLE | WD09X25644 | 726 | 11 days | ||
|
BASKET ASM SILVERWARE | WD28X24469 | 761 | 11 days | ||
|
LID BASKET MIDDLE | WD28X24476 | WD28X24469 | 763 | 11 days | |
|
|
LID BASKET SIDE | WD28X24477 | WD28X24469 | 767 | 11 days | |
|
BLASTER SILVERWARE ASM | WD22X22863 | 769 | 11 days |
