Model# DCVH660EH0WW

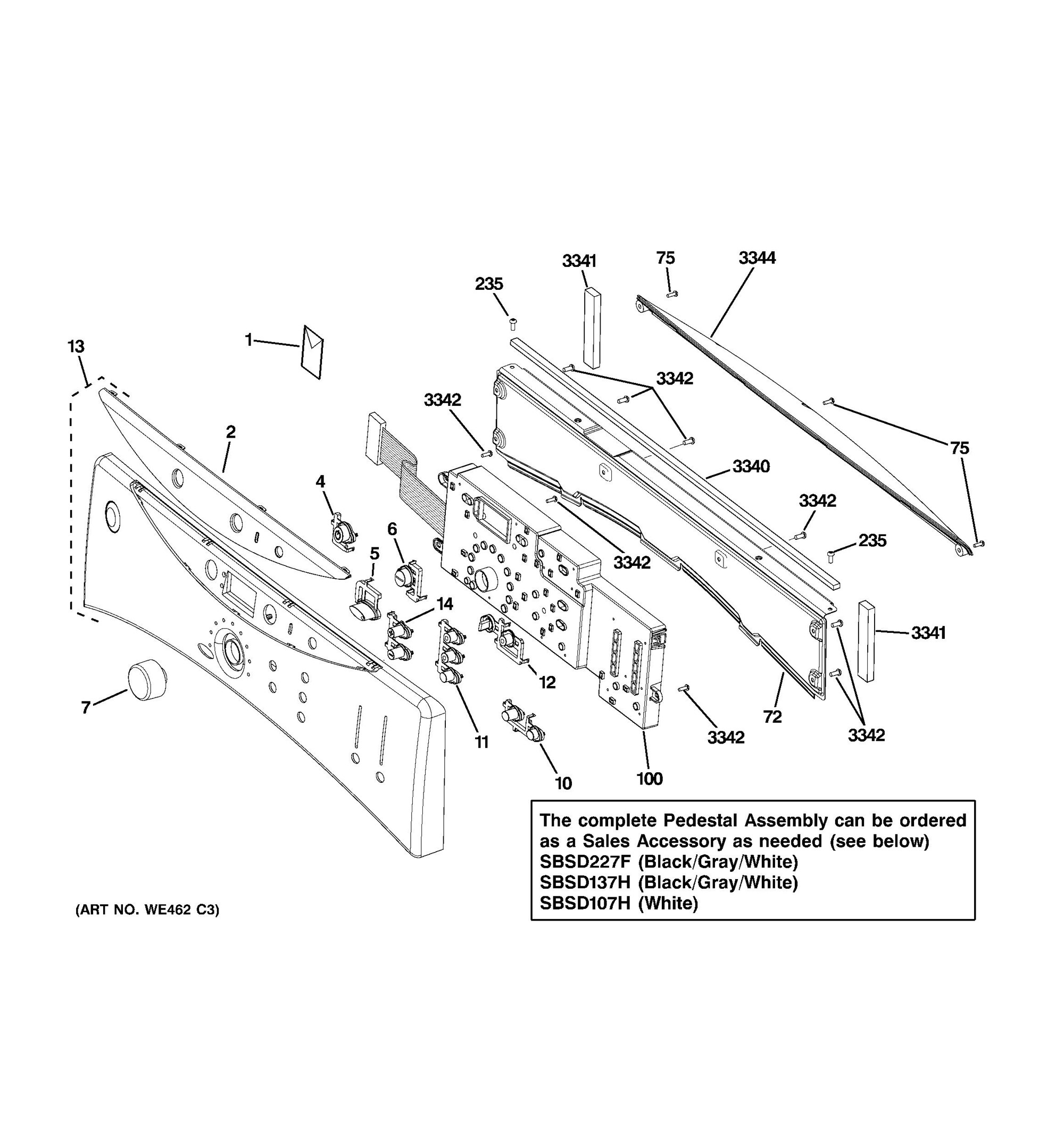

The image and part list below are associated with the component: CONTROLS & BACKSPLASH:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
MINI-MANUAL WIRING ELECT | 31-16122 | 1 | 11 days | ||
|
INSTALL INTRUCTIONS | 31-16152 | 1 | 11 days | ||
|
USE & CARE | 49-90316 | 1 | 11 days | ||
|
BAR GRAPH BUTTONS | WE1M560 | 10 | 11 days | ||
|
USER INTERFACE BOARD ASM | WE4M385 | 100 | 2 days | ||
|
OPTION BUTTONS | WE1M561 | 11 | 11 days | ||
|
LOCK BUTTON | WE1M562 | 12 | 2 days | ||
|
CNTRL PNL ASM WH | WE19M1524 | 13 | 11 days | ||
|
PLUS MINUS BUTTONS | WE1M563 | 14 | 11 days | ||
|
LEXAN WINDOW ENGLISH | WE19M1425 | 2 | 11 days | ||
|
SCREW | WE2X263 | WE2X263D | 235 | 2 days | |
|
GASKET SEAL TOP FRONT SH | WE1M565 | 3340 | 2 days | ||
|
GASKET SEAL SIDE FRONT S | WE1M566 | 3341 | 11 days | ||
|
SCREW FRONT | WE2M211 | 3342 | 11 days | ||
|
BACK HOUSING WH | WE19M1437 | 3344 | 2 days | ||
|
POWER BUTTON | WE1M557 | 4 | 2 days | ||
|
MY CYCLE BUTTON | WE1M558 | 5 | 2 days | ||
|
START PAUSE BUTTON | WE1M559 | WE1M827 | 6 | 2 days | |
|
KNOB & FILM PROTECTOR | WE1M697 | 7 | 2 days | ||
|
FRONT SHEILD | WE1M564 | 72 | 2 days | ||
|
SCREW BACK HOUSING | WE2M210 | 75 | 2 days |
