Model# DCF401W

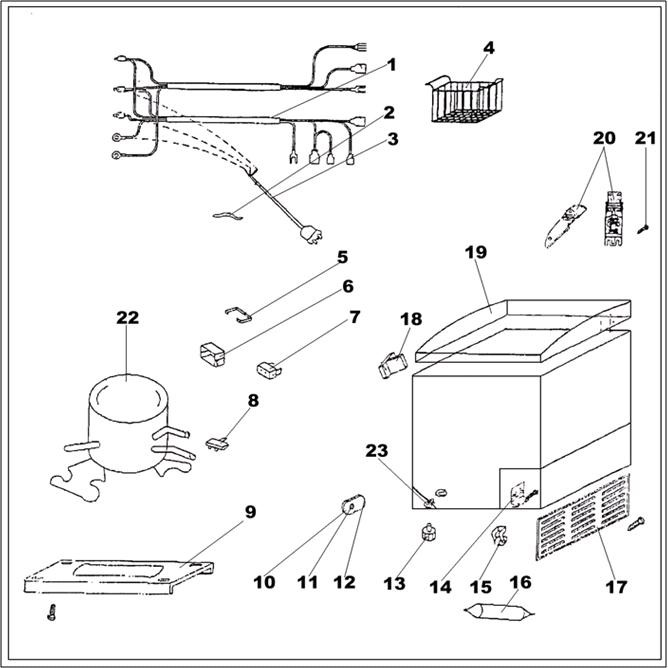

The image and part list below are associated with the component: Section 1 Image 1:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
THERMOSTAT CONTROL KNOB | 401.08a | 11 days | |||
|
INTERIOR WIRE | 401.22 | 1 | 11 days | ||
|
CONTROL PANEL | 401.09 | 10 | 1 days | ||
|
THERMOSTAT | 401.08 | 1.03.02.01.002 | 11 | 1 days | |
|
INDICATOR LAMP | 401.07 | 1.01.03.01.009R | 12 | 1 days | |
|
FRONT FOOT | 401.05 | 13 | 11 days | ||
|
CAIRO BOX | 401.02 | 14 | 11 days | ||
|
CASTER | 401.03 | 15 | 11 days | ||
|
DRIER | 79401 | 16 | 1 days | ||
|
COMPRESSOR COVER | 401.01 | 17 | 11 days | ||
|
RELAY COVER | 401.17 | 18 | 1 days | ||
|
LID SHELL | 401.29 | 19 | 11 days | ||
|
WIRE CLIP | 401.20 | 2 | 11 days | ||
|
HINGE ASSEMBLY | 401.26 | 20 | 1 days | ||
|
SCREW | 401.28 | 21 | 11 days | ||
|
COMPRESSOR | tl3f | 22 | - |
|
|
|
OUTER DRAIN HOLE STOPPER | 401.30 | 23 | 11 days | ||
|
INNER DRAIN HOLE STOPPER | 401.31 | 23 | 11 days | ||
|
POWER CORD | 401.21 | 3 | 11 days | ||
|
BASKET | 401.23 | 4 | 11 days | ||
|
RELAY COVER RETAINER | 401.18 | 5 | 11 days | ||
|
DOOR GROMMET | 401.19 | 6 | 11 days | ||
|
STARTER RELAY | 401.16 | 7 | 1 days | ||
|
OVERLOAD PROTECTOR | 401.12 | 8 | 1 days | ||
|
COMPRESSOR SUPPORT | 401.11 | 9 | 11 days | ||
|
UPPER HINGE COVER | 401.24 | ns | 1 days | ||
|
LOWER HINGE COVER | 401.25 | ns | 1 days | ||
|
COMPRESSOR CAPACITOR | 550.31 | ns | 1 days |
