Model# D1707W

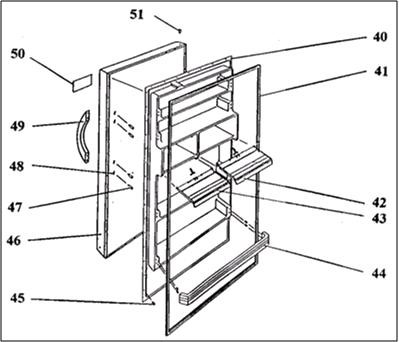

The image and part list below are associated with the component: Section 1 Image 2:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
CAPACITOR | 3-35257-001 | 11 days | |||
|
HINGE PLUG | 1-34199-006 | - | 11 days | ||
|
DOOR PLUG | 1-34198-001 | - | 11 days | ||
|
WIRING HARNESS | 4-81208 | - | 11 days | ||
|
KICKPLATE KIT | 90030-020 | - | 4 days | ||
|
LOWER HINGE PIN - THREADED | 1-34188 | 10 | 11 days | ||
|
LEVELING LEG | 90028-002 | 90028-005 | 11 | 11 days | |
|
LOWER HINGE KIT includes # 10, 13 | 90008-044 | 12 | 11 days | ||
|
BOTTOM HINGE SPACER | 1-80243-102 | 12a | 11 days | ||
|
CRISPER COVER | 4-60035-001 | 15 | 11 days | ||
|
CRISPER CHANNEL SUPPORT | 3-34715-004 | 16 | 11 days | ||
|
LOWER CRISPER WHITE | 4-60031-001 | 17 | 11 days | ||
|
UPPER CRISPER WHITE | 4-60040-001 | 18 | 11 days | ||
|
TOP WIRE SHELF | 4-60011-001 | 19 | 11 days | ||
|
WIRE SHELF | 4-60011-002 | 20 | 11 days | ||
|
MEAT PAN COVER | 4-60062-001 | 21 | 11 days | ||
|
CLAMP | 3-26095-013 | 22 | 11 days | ||
|
EAVP PIPE INSULATION | 3-24004-013 | 24 | 11 days | ||
|
EVAPORATOR MOUNT SPACER | 1-23781 | 26 | 11 days | ||
|
EVAPORATOR ASSEMBLY | 4-33327-003 | 27 | 4 days | ||
|
THERMOSTAT KNOB | 4-81294-003 | 28 | 11 days | ||
|
DRAIN PAN | 3-80407-201 | 3 | 11 days | ||
|
CONTROL PLATE | 1-81154-201 | 30 | 11 days | ||
|
THERMOSTAT | 2-60061-001 | 31 | 11 days | ||
|
LIGHT SHIELD | 3-60041-001 | 32 | 11 days | ||
|
LIGHT SOCKET | 2-80025-101 | 34 | 11 days | ||
|
HEAT SHIELD MOUNTING BRACKET | 3-80475-202 | 36 | 11 days | ||
|
LIGHT BULB | 1-24397-001 | 37 | 11 days | ||
|
UPPER HINGE KIT | 90008-026 | 38 | 11 days | ||
|
WHITE HINGE COVER includes # 38c | 3-80838-003 | 38a | 11 days | ||
|
SHIM - BOTTOM HINGE | 2-81312 | 38b | 11 days | ||
|
LIGHT SWITCH | 2-32164-001 | 39 | 11 days | ||
|
DOOR LINER KIT includes # 45 | 90001-101 | 40 | 11 days | ||
|
GASKET KIT includes # 45 | 90000-043 | 41 | 11 days | ||
|
SHORT DAIRY DOOR | 4-34771-001 | 42 | 4 days | ||
|
LONG DAIRY DOOR | 4-34771-002 | 43 | 11 days | ||
|
DOOR RAIL | 3-81529-009 | 44 | 11 days | ||
|
FOAMED DOOR SHELL KIT | 90017-108 | 46 | 11 days | ||
|
HANDLE KIT includes # 47, 47a, 49a-b | 90002-102 | 49 | 4 days | ||
|
DOOR HANDLE | 4-60074-002 | 49a | 4 days | ||
|
HANDLE SCREW COVER | 2-60085-002 | 49b | 11 days | ||
|
HINGE BUSHING | 3-60199-001 | 51 | 11 days | ||
|
PROTECTOR COVER | 3-35171-001 | 6 | 11 days | ||
|
COVER CLIP | 4-34047-001 | 6a | 11 days | ||
|
COMPRESSOR KIT includes # 6, 7a-c, 8 | 90006-062 | 7 | 11 days | ||
|
RELAY | 2-35181-006 | 7a | 11 days | ||
|
PROTECTOR | 2-34286-020 | 7b | 11 days | ||
|
DRIER | 79401 | 7c | 4 days | ||
|
COMPRESSOR BASE | 3-80482-201 | 9 | 11 days |
