Model# CV136

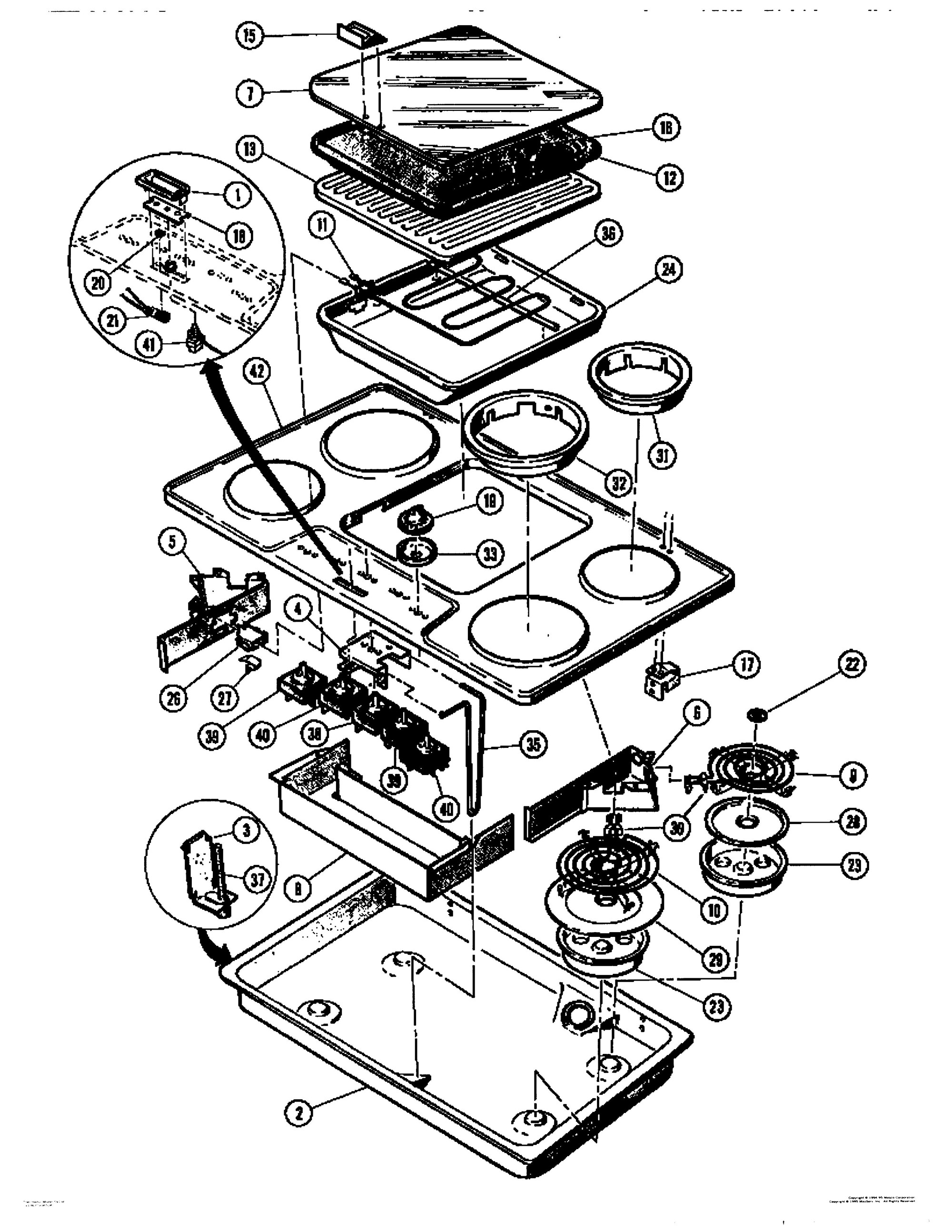

The image and part list below are associated with the component: 01 - COOKTOP:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
WIRE ASSY | 14-51-624 | - | 11 days | ||
|
Sleeve | 412518 | 00412518 | - | 11 days | |
|
Rivet, Pop Usm | 411532 | 00411532 | - | 11 days | |
|
BEZEL, NAMEPLATE, CHROME | 14-29-414-11 | 1 | 11 days | ||
|
Element 8 in., 240V | 486147 | 00486168 | 10 | 5 days | |
|
NLA (element, 8 in., 208V | 14-51-372 | 00486149 | 10A | 5 days | |
|
NLA (element, griddle, 1400W, 240V | 484781 | 00484781 | 11 | 5 days | |
|
Element, griddle 208V, 1400W | 14-29-398 | 00485505 | 11A | 11 days | |
|
NLA when stock gone (was superceded by NLA part 14-51-585 | 413341 | 00486163 | 12 | 5 days | |
|
NLA when stock gone (was superceded by NLA part 14-39-163 | 412748 | 00484852 | 13 | 5 days | |
|
Handle, griddle | 412706 | 00414768 | 15 | 5 days | |
|
Handle, Griddle Chrm | 411398 | 00411398 | 16 | 5 days | |
|
Hinge assy., CV136 | 413346 | 00413346 | 17 | 11 days | |
|
INSERT, NAMEPLATE | 14-29-409 | 18 | 11 days | ||
|
Knob, Infinite Switch | 414500 | 00414500 | 19 | 5 days | |
|
ROUGH-IN BOX | 14-51-676-05 | 2 | 11 days | ||
|
Lens, Red Pilot Long | 189343 | 00189343 | 20 | 5 days | |
|
Pilot Lite | 411213 | 00411213 | 21 | 5 days | |
|
Medallion, Silk Scrn (Enamel) | 415311 | 00415311 | 22 | 5 days | |
|
NLA when stock gone (was superceded by NLA 14-51-758 | 486140 | 00484596 | 23 | 5 days | |
|
Griddle pan | 142809 | 00486166 | 24 | 5 days | |
|
RECEPTACLE ASSY, GRIDDLE ELEMENT | 14-51-627 | 26 | 11 days | ||
|
GROUND CLIP | 14-29-434 | 27 | 11 days | ||
|
Reflector, Element 6 in.Chrm Pltd | 484592 | 00484592 | 28 | 5 days | |
|
Reflector, Element 8 in. Chrome | 484593 | 00484593 | 29 | 5 days | |
|
Bracket, Pull Down, | 414698 | 00414698 | 3 | - |
|
|
Retainer | 413338 | 00413338 | 30 | 11 days | |
|
Trim, Ring 6 in., Chrm Plt, TMH | 484594 | 00484594 | 31 | 5 days | |
|
Trim, Ring 8 in., Chrome Pltd | 484595 | 00484595 | 32 | 5 days | |
|
NLA (Ring, knob | 412751 | 00412751 | 33 | 5 days | |
|
ROD, COOKTOP SUPPORT | 14-29-395-11 | 35 | 11 days | ||
|
NLA (support rod, griddle | 14-29-393-11 | 36 | 11 days | ||
|
Bolt 1/4-20X2-1/4 Sl Hx Znc | 413418 | 00413418 | 37 | 11 days | |
|
NLA (Switch, Infinite, 1400W, 240V | 14-29-390 | 38 | 11 days | ||
|
Switch, infinite | 14-29-428 | 00486954 | 38A | 5 days | |
|
|
Switch, infinite | 14-29-428 | 00486954 | 38B | 5 days | |
|
Switch, 1250W 240V | 412747 | 00414604 | 39 | 5 days | |
|
Switch, infinite | 14-29-429 | 00414604 | 39A | 5 days | |
|
|
Switch, infinite | 14-29-429 | 00414604 | 39B | 5 days | |
|
Bracket, Support | 413345 | 00413345 | 4 | 11 days | |
|
|
Infinite switch, 2100W, 240V | 412749 | 00414604 | 40 | 5 days | |
|
|
Switch, infinite | 14-29-429 | 00414604 | 40A | 5 days | |
|
|
Switch, infinite | 14-29-429 | 00414604 | 40B | 5 days | |
|
Switch, Momentary | 414466 | 00414466 | 41 | 5 days | |
|
TOP, MAIN, STAINLESS STEEL | 14-17-209 | 42 | 11 days | ||
|
TOP, MAIN, FRESH AVOCADO | 14-51-620-38 | 42B | 11 days | ||
|
NLA (MainTop, no Finish, CV136 Almond | 14-51-620-39 | 42C | 11 days | ||
|
TOP, MAIN, GOLDEN WHEAT | 14-51-620-40 | 42D | 11 days | ||
|
NLA (Maintop, CV136 Nu-White | 14-51-620-41 | 42E | 11 days | ||
|
NLA (Channel Left | 486165 | 00486165 | 5 | 11 days | |
|
CHANNEL, RIGHT | 14-51-605-03 | 6 | 11 days | ||
|
Cover, Griddle, CV136 | 368364 | 00486134 | 7 | 5 days | |
|
COVER, SWITCH, WELD ASSY | 14-51-607-03 | 8 | 11 days | ||
|
ELEMENT W/SUPPORT, 6``, 240V | 14-51-621 | 00488810 | 9 | - |
|
|
ELEMENT W/SUPPORT, 6`` 208V | 14-51-622 | 9A | 11 days |
