Model# CTX18DABQRWW

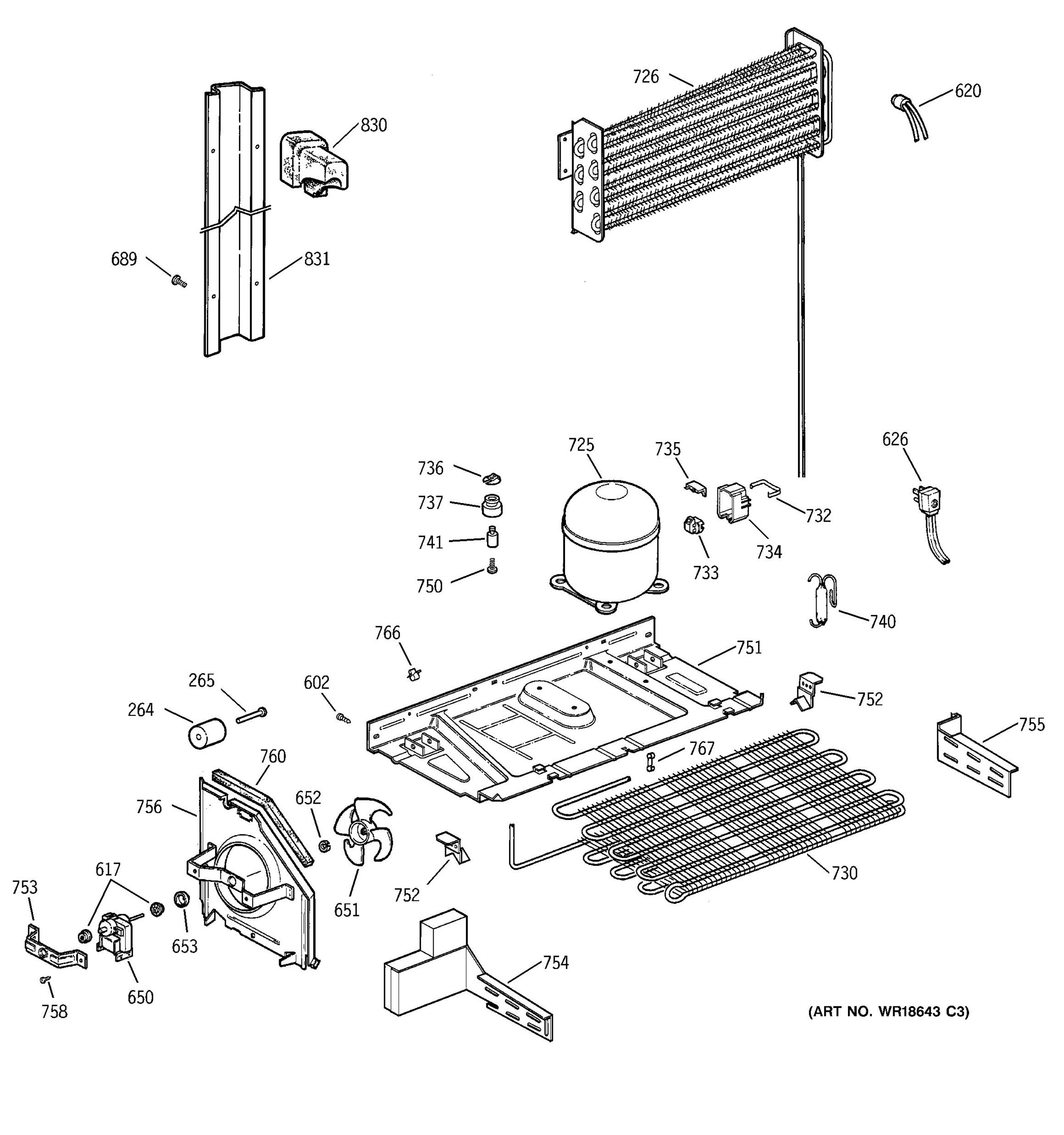

The image and part list below are associated with the component: UNIT PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
WHEEL MOBILITY BRACKET | WR02X10137 | WR02X10480 | 264 | 3 days | |
|
AXLE WHEEL | WR01X10039 | WR01X10604 | 265 | 3 days | |
|
SCR 1/4-14 X 3/4 | WR01X1591 | WR1X1591 | 602 | 11 days | |
|
GROMMET COND FAN | WR02X10098 | 617 | 3 days | ||
|
THERMOSTAT DEF | WR50X0131 | WR50X10010 | 620 | 3 days | |
|
CORD POWER ASM | WR23X0108 | WR23X10300 | 626 | 3 days | |
|
MOTOR COND FAN 44 FRAME | WR60X10018 | WR60X10168 | 650 | 3 days | |
|
BLADE COND FAN ASM | WR60X10023 | WR60X10030 | 651 | 3 days | |
|
RING COMP COND FAN BLADE | WR02X10323 | 652 | 3 days | ||
|
CAP DUST | WR02X10322 | 653 | 3 days | ||
|
SCR 8-32 SPEC DRILL PT | WZ05X0246 | WZ5X246 | 689 | 3 days | |
|
COMPRESSOR REPL KIT | WR87X10008 | WR87X10224 | 725 | 3 days | |
|
LOW SIDE ASM | WR85X10004 | 726 | 3 days | ||
|
COND ASM FINAL RECIP | WR84X10009 | WR84X10053 | 730 | 3 days | |
|
CLIP RELAY COVER | WR02X8976 | WR2X8976 | 732 | 3 days | |
|
RELAY PTCR | WR07X10015 | 733 | 3 days | ||
|
COVER RELAY | WR02X9169 | WR2X9169 | 734 | 11 days | |
|
OVERLOAD | WR08X10015 | 735 | 3 days | ||
|
CLIP COMPRESSOR MOUNT | WR02X8203 | WR2X8203 | 736 | 3 days | |
|
GROMMET COMP MTG | WR02X7238 | WR2X7238 | 737 | 3 days | |
|
DRYER BIFURCATED XH9 | WR86X0096 | WR86X25269 | 740 | 11 days | |
|
STUD MTG COMPR | WR01X1779 | WR1X1779 | 741 | 3 days | |
|
SCR 10-32 TR 1/2 | WR01X1786 | WR1X1786 | 750 | 3 days | |
|
BASEPLATE HIGH SIDE | WR17X10313 | 751 | - |
|
|
|
SUPPORT HIGH SIDE | WR17X10317 | 752 | 11 days | ||
|
BRKT FAN BTM | WR02X10321 | WR02X10100 | 753 | 3 days | |
|
BAFFLE ASM LH | WR17X10316 | 754 | 11 days | ||
|
BAFFLE COND RH | WR17X10314 | 755 | 3 days | ||
|
COND FAN HSG&BRACKET ASM | WR17X10425 | 756 | 3 days | ||
|
SCREW 8-32 X 3/8 SPH | WD02X0323 | WD2X323D | 758 | 3 days | |
|
FOAM STRIP SE ADH | WR14X10008 | 760 | 3 days | ||
|
CLIP WIRE | WB02X8115 | 766 | 11 days | ||
|
CLIP COND (DL) | WR02X10135 | 767 | 11 days | ||
|
FOAM PLUG S.L. | WR82X0360 | WR82X360 | 830 | 11 days | |
|
COVER SUCT LINE | WR17X3056 | 831 | 11 days |
