Model# CTF14AJDR

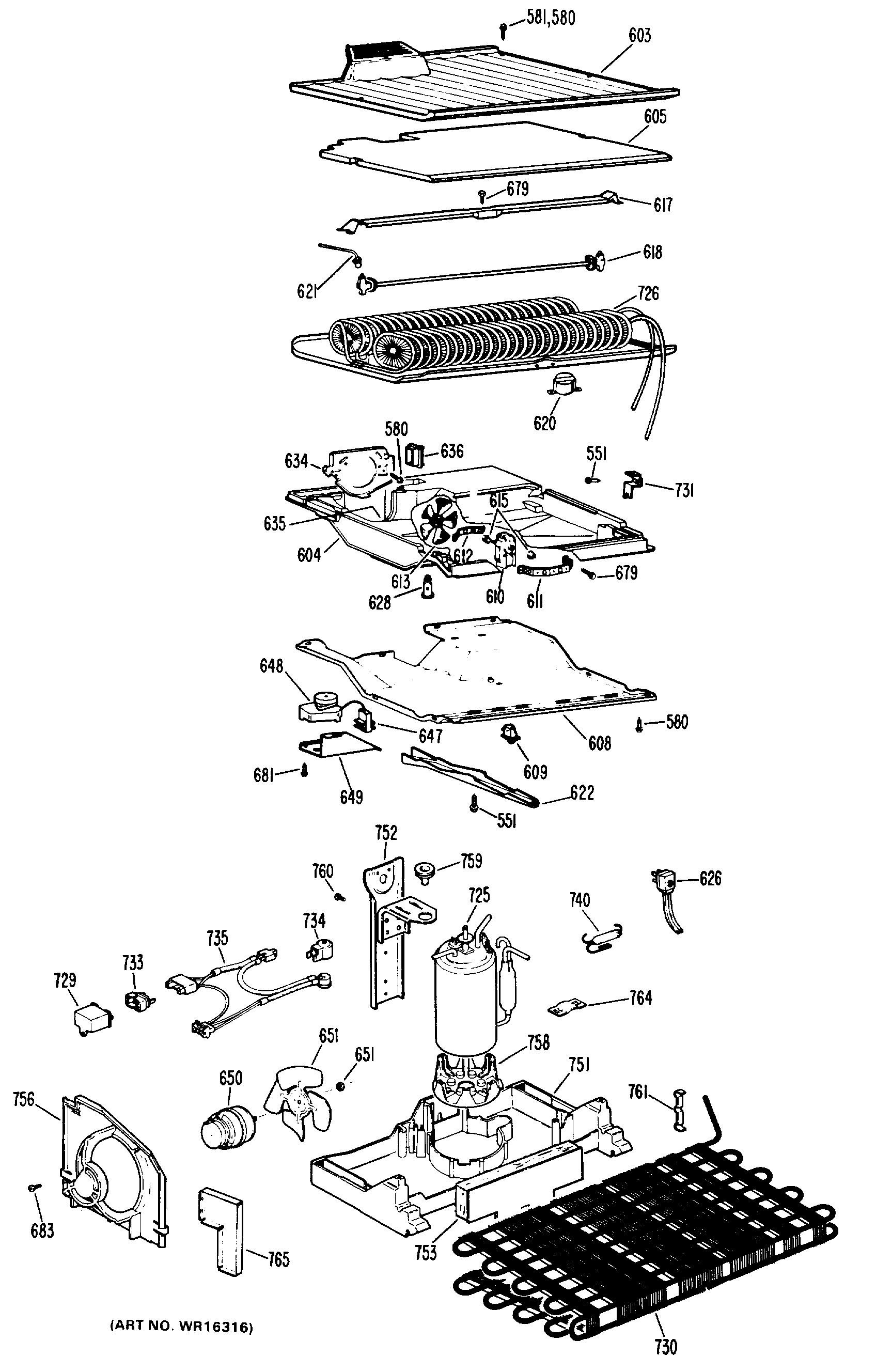

The image and part list below are associated with the component: Illustration 3:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCR 8-18 AB RNDW 5/8 SS | WZ04X0244 | WZ4X244D | 551 | 5 days | |
|
SCR 8-32F HXW 5/8 SNSSP | WR01X1557 | WR1X1750 | 580 | 11 days | |
|
SCR 8-18 BAT TR 3/4SSPLW | WZ06X0075 | 581 | 11 days | ||
|
BOTTOM ASM FZ | WR17X1338 | 603 | 11 days | ||
|
FOAM STRIP | WR14X0268 | WR2X3899 | 604 | 5 days | |
|
HOUSING-EVAPORATOR | WR17X1625 | 604 | 11 days | ||
|
COVER EVAP ASM | WR17X1346 | 605 | 11 days | ||
|
LINER TOP FF | WR17X1626 | 608 | 11 days | ||
|
SWITCH LIGHT WH | WR23X0193 | WR23X37285 | 609 | 11 days | |
|
MOTOR EVAP FAN | WR60X0130 | WR60X30349 | 610 | 11 days | |
|
BRACKET EVAP FAN-LARGE | WR02X6194 | WR2X7022 | 611 | 11 days | |
|
BRACKET EVAP FAN | WR02X7137 | WR2X7137 | 612 | 11 days | |
|
FAN BLADE EVAP MOTOR | WR60X0114 | WR60X114 | 613 | 5 days | |
|
|
RING COMPRESSION | WR02X3198 | WR60X114 | 613 | 5 days | |
|
GROMMET | WR02X2945 | WR2X2945 | 615 | 5 days | |
|
COVER HEATER | WR02X6166 | 617 | 11 days | ||
|
HEATER DEFROST | WR51X0211 | WR51X414 | 618 | 5 days | |
|
THERMOSTAT DEFROST | WR50X0037 | WR50X55 | 620 | 5 days | |
|
TROUGH DRAIN | WR17X5809 | 622 | 11 days | ||
|
CLAMP CABLE | WR01X5278 | 626 | 11 days | ||
|
CORD POWER ASM | WR23X0108 | WR23X10300 | 626 | 5 days | |
|
SUPPORT BREAKER STRIP | WR02X4711 | 628 | 11 days | ||
|
NUTSTRIP U | WR02X4712 | 628 | 11 days | ||
|
ORIFICE EVAP FAN | WR17X1218 | 634 | 11 days | ||
|
BRACKET FAN ORIFICE | WR02X4717 | 635 | 11 days | ||
|
GROMMET SCR | WR01X1684 | WR1X1684 | 635 | 11 days | |
|
GASKET & NOZZLE ASM | WR02X4997 | 636 | 11 days | ||
|
PLUG TEST ELECT | WR23X0204 | 647 | 11 days | ||
|
DEFROST CONTROL | WR09X0414 | WR9X502 | 648 | 5 days | |
|
BRACKET DEF CONTROL | WR02X7107 | 649 | 11 days | ||
|
MOTOR COND FAN | WR60X0179 | WR60X187 | 650 | 5 days | |
|
BLADE COND FAN | WR60X0167 | WR60X220 | 651 | 11 days | |
|
WASHER, CUSHION | WR01X1714 | WR1X1714 | 651 | 5 days | |
|
SCREW | WZ06X0133 | WZ6X133 | 679 | 11 days | |
|
SCR 6-19 HI/LO HXW 1/2 S | WZ04X0224 | WZ4X224D | 681 | 11 days | |
|
SCREW FAN MOTOR | WR01X1716 | WR1X1716 | 683 | 11 days | |
|
REFRIGERANT 6 3/4 OZ. | WR97X0155 | 725 | 11 days | ||
|
FOAM STRIP | WR14X0313 | WR14X313 | 726 | 5 days | |
|
MACHINE LOW SIDE | WR85X0204 | 726 | 11 days | ||
|
CAPACITOR | WR62X0043 | WR62X51 | 729 | 5 days | |
|
CONDENSER ASM. | WR84X0134 | WR84X134 | 730 | 11 days | |
|
CONDENSER ASM | WR84X0108 | WR84X134 | 730 | 11 days | |
|
CLIP SUCTION LINE | WR02X4721 | 731 | 11 days | ||
|
BRACKET FZ BTM | WR02X4722 | 731 | 11 days | ||
|
RELAY | WR07X0187 | WR7X222 | 733 | 5 days | |
|
COVER-GUARDETTE | WR02X7396 | WR2X7396 | 734 | 11 days | |
|
GUARDETTE ASM | WR08X0087 | 735 | 11 days | ||
|
UNIMOUNT | WR17X2088 | 751 | 11 days | ||
|
BRACE ASM COMP | WR17X6204 | 752 | 11 days | ||
|
BAFFLE CENTER | WR17X6205 | 753 | 11 days | ||
|
HOUSING COND. FAN | WR17X6203 | 756 | 11 days | ||
|
PAD-COMP. | WR17X2091 | 758 | 11 days | ||
|
GROMMET | WR02X7394 | WR2X7394 | 759 | - |
|
|
SCREW | WR01X1717 | 760 | 11 days | ||
|
CLIP COND | WR02X7538 | 761 | 11 days | ||
|
CLIP COND | WR02X7500 | 764 | 11 days | ||
|
BAFFLE AIR | WR17X6206 | 765 | 11 days |
