Model# CSG28DHCBWW

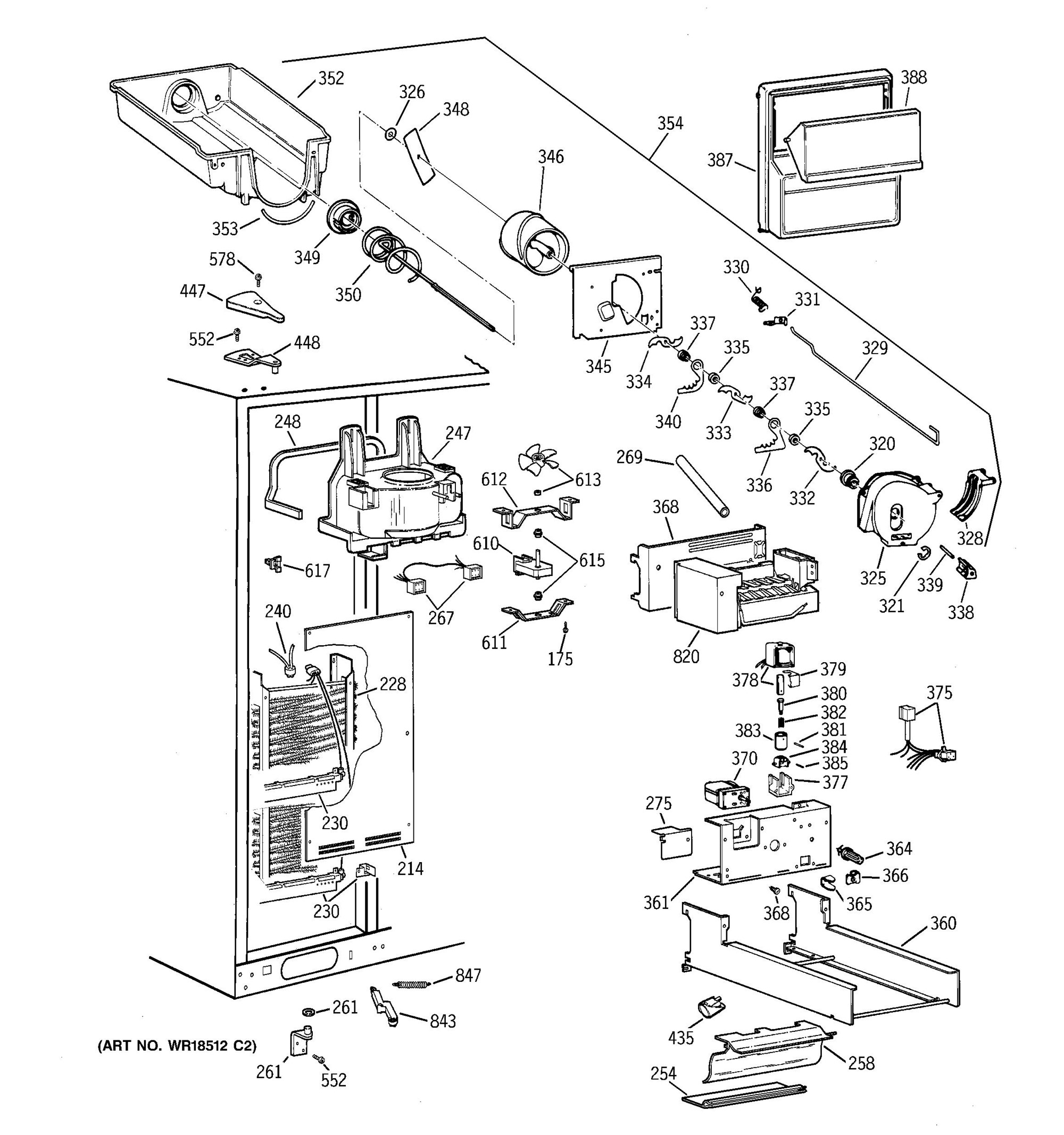

The image and part list below are associated with the component: FREEZER SECTION:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCR 8-18 AB IHW 5/8 S | WR01X10035 | WR01X10652 | 175 | 5 days | |
|
SCR 8-18 AB IHW 5/8 S | WR01X2023 | WR1X2023 | 175 | 11 days | |
|
COVER EVAP | WR17X10217 | 214 | 11 days | ||
|
LOW SIDE REPL ASM | WR85X0306 | WR85X306 | 228 | 5 days | |
|
HEATER HARNESS DEF ASM | WR51X0445 | WR51X445 | 230 | 5 days | |
|
THERMOSTAT DEF | WR50X0122 | WR50X122 | 240 | 5 days | |
|
ORIFICE EVAP FAN | WR17X10264 | WR17X10429 | 247 | 5 days | |
|
FOAM STRIP | WR14X0272 | WR2X3899 | 248 | 5 days | |
|
FOAM STRIP | WR14X0493 | WR14X493 | 248 | 5 days | |
|
EXTENSION SHIELD LIGHT | WR17X4275 | 254 | 11 days | ||
|
SHIELD LIGHT FZ | WR17X10043 | 258 | 11 days | ||
|
THRUST WASHER | WR01X2033 | WR1X2033 | 261 | 5 days | |
|
HINGE BTM PIN ASM WH | WR13X0762 | WR13X762 | 261 | 5 days | |
|
HARNESS LOW SIDE | WR23X10072 | 267 | 5 days | ||
|
TUBE WATER FILL | WR02X7927 | WR2X7927 | 269 | 5 days | |
|
COVER IM PLUG | WR01X2018 | WR1X2018 | 275 | 11 days | |
|
NUT AUGER | WR01X1585 | WR1X1585 | 320 | 5 days | |
|
RETAINER RING E | WR01X1990 | WR1X1990 | 321 | 11 days | |
|
HSNG CRUSHER DISP | WR17X2061 | 325 | 5 days | ||
|
WASHER | WR01X1991 | WR1X1991 | 326 | 11 days | |
|
SPRING ICE DEFLECTOR | WR02X4561 | WR2X4561 | 328 | 5 days | |
|
DEFLECTOR ICE DISP | WR17X2059 | 328 | 5 days | ||
|
PIN DEFLECTOR DISP | WR02X9164 | WR2X9164 | 328 | 11 days | |
|
WIRE ACTUATOR DISP | WR17X3853 | 329 | 11 days | ||
|
SPRING | WR02X4145 | WR2X4145 | 330 | 5 days | |
|
RETAINER ACTUATOR WIRE | WR02X9165 | WR2X9165 | 331 | 11 days | |
|
BLADES MOVING DISP | WR17X3740 | 332 | 11 days | ||
|
BLADES MOVING DISP | WR17X3741 | 333 | 11 days | ||
|
BLADES MOVING DISP | WR17X3742 | 334 | 11 days | ||
|
SPACER CRUSHER MIDDLE | WR02X4139 | WR2X4139 | 335 | 5 days | |
|
BLADE STATIONARY DISP | WR17X3739 | 336 | 11 days | ||
|
SPACER CRUSHER STATIONAR | WR02X4138 | WR2X4138 | 337 | 5 days | |
|
BLADE REST DISP | WR02X4140 | WR2X4140 | 338 | 5 days | |
|
PIN SPIRAL | WR02X4141 | WR2X4141 | 339 | 5 days | |
|
BLADE STATIONARY DISP | WR17X3738 | 340 | 11 days | ||
|
PLATE FRONT DISP | WR17X3733 | 345 | 11 days | ||
|
HELIX FRONT DISP | WR17X4207 | 346 | 5 days | ||
|
BLADE IN DISP | WR02X7351 | WR2X7783 | 348 | 5 days | |
|
CUP DRIVE DISP | WR02X4550 | WR2X4550 | 349 | 5 days | |
|
AUGER HELIX DISP | WR17X10068 | 350 | 11 days | ||
|
BUCKET ICE DISP | WR30X0313 | WR30X313 | 352 | 11 days | |
|
BUCKET SEAL DISP | WR02X7905 | WR2X7905 | 353 | 5 days | |
|
BUCKET & AUGER ASM DISP | WR17X10067 | 354 | - |
|
|
|
SHELF BUCKET CANT ASM | WR71X2529 | 360 | 11 days | ||
|
COVER MOTOR & SOLENOID | WR17X10070 | 361 | 11 days | ||
|
SUPP0RT TWIST | WR02X7310 | WR2X7310 | 364 | 5 days | |
|
DRIVE AUGER DISPENSER | WR02X4854 | WR2X4854 | 365 | 5 days | |
|
NUT J | WR01X1547 | WR1X1547D | 366 | 5 days | |
|
SCREW MOTOR MOUNT | WR01X1788 | WR01X10618 | 368 | 5 days | |
|
BRKT IM MTG | WR02X10011 | 368 | 5 days | ||
|
MOTOR CRUSHER DISP | WR60X0201 | WR60X201 | 370 | 11 days | |
|
HARNESS MOTOR DISP | WR23X10029 | 375 | 11 days | ||
|
SADDLE SOLENOID | WR02X7309 | WR2X7309 | 377 | 5 days | |
|
SOLENOID | WR62X0065 | WR62X10054 | 378 | 5 days | |
|
SHROUD SOLENOID | WR17X1063 | WR62X26536 | 379 | 11 days | |
|
|
PLUNGER SOLENOID | WR17X1064 | WR62X26536 | 380 | 11 days | |
|
|
PIN SPIRAL | WR02X4257 | WR62X26536 | 381 | 11 days | |
|
|
SPRING SOLENOID LINKAGE | WR02X4258 | WR62X26536 | 382 | 11 days | |
|
COLLAR SOLENOID DISP | WR17X1065 | WR62X23154 | 383 | 11 days | |
|
|
STIRRUP SOLENOID DISP | WR17X1066 | WR62X26536 | 384 | 11 days | |
|
|
PIN SPIRAL | WR02X4259 | WR62X26536 | 385 | 11 days | |
|
COVER BUCKET ASM | WR17X10041 | 387 | 5 days | ||
|
DOOR ICE STORAGE DISP | WR17X3838 | 388 | 5 days | ||
|
SOCKET TERM ASM | WR02X9014 | WR2X9014 | 435 | 11 days | |
|
LAMP 40W 240 V | WR23X0442 | WR02X12207 | 435 | 5 days | |
|
COVER HINGE WH FZ | WR02X9433 | WR2X9433 | 447 | 11 days | |
|
COVER HINGE WH FF | WR02X9434 | WR2X9434 | 447 | 11 days | |
|
HINGE TOP ASM FZ | WR13X10012 | 448 | 11 days | ||
|
HINGE TOP ASM FF | WR13X10013 | 448 | 5 days | ||
|
SCR 12-24 TT OVT .900 S | WR01X2022 | WR01X10631 | 552 | 5 days | |
|
SCR 8-32 MA PA 3/8 S | WZ02X0503 | WZ2X464D | 578 | 5 days | |
|
EVAP FAN MOTOR | WR60X10012 | 610 | 5 days | ||
|
BRACKET EVAP FAN | WR02X10100 | 611 | 5 days | ||
|
BRACKET EVAP FAN | WR02X10112 | 612 | 5 days | ||
|
RING COMPRESSION | WR02X3198 | WR60X114 | 613 | 5 days | |
|
BLADE EVAP FAN | WR60X10013 | 613 | 5 days | ||
|
GROMMET COND FAN | WR02X10098 | 615 | 5 days | ||
|
GROMMET SCR CLOSED | WR02X8349 | WR2X8349 | 617 | 11 days | |
|
IM CRESCENT | WR30X0331 | WR30X10081 | 820 | 5 days | |
|
LEVER ASM WH FZ | WR11X0170 | WR11X170 | 843 | 5 days | |
|
SPRING CLOSURE | WR01X2027 | WR1X2027 | 847 | 5 days |
