Model# CDB3100AWE

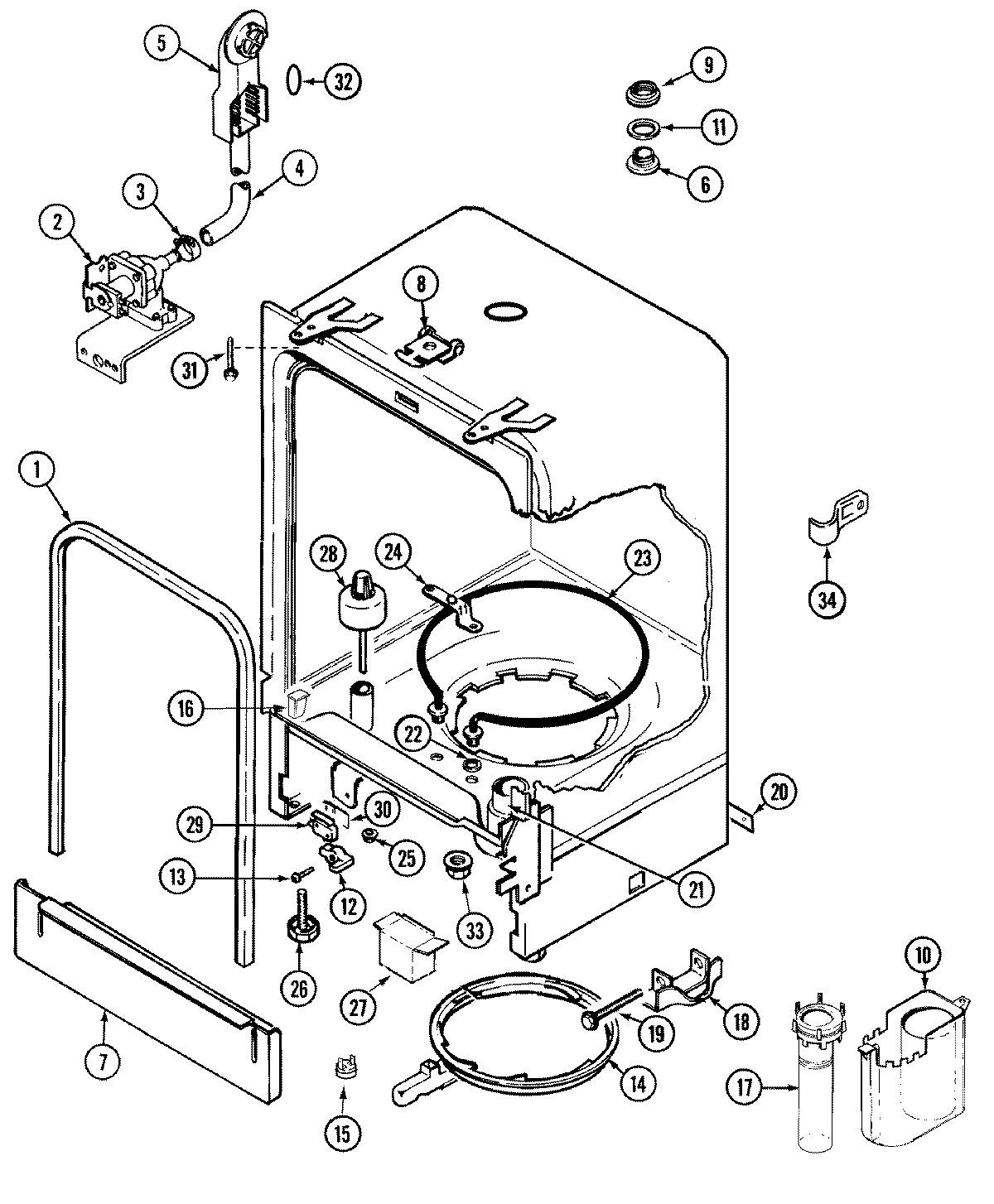

The image and part list below are associated with the component: 06 - TUB:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SEAL, DOOR | 902894 | 1 | 11 days | ||
|
VENT, INLET | Y913095 | 10 | 11 days | ||
|
WASHER, TUB TOP | 910069 | 11 | 2 days | ||
|
LEVER, ACTUATOR | 912014 | 12 | 2 days | ||
|
PIN, LEVER PIVOT | 912015 | 13 | 11 days | ||
|
RING, LOCKING | Y912686 | 14 | 2 days | ||
|
THERMOSTAT, LIMITING | 99001852 | 15 | 11 days | ||
|
CLIP, THERMOSTAT | 99001008 | 15 | 2 days | ||
|
DEFLECTOR, WATER | 99001885 | 16 | 11 days | ||
|
TUBE, INLET | Y913096 | 17 | 2 days | ||
|
BRACKET, ADJUSTING | 912651 | 18 | 11 days | ||
|
SCREW, ADJUSTING BRACKET | 912613 | 19 | 11 days | ||
|
SCREW-No.8X7/16 HEX WASHER HEAD | 99002553 | WP489128 | 2 | 2 days | |
|
VALVE, WATER | 99001359 | WP99001359 | 2 | - |
|
|
STRAP, SUPPORT | 912654 | 20 | 11 days | ||
|
|
SCREW-No.8X7/16 HEX WASHER HEAD | 99002553 | WP489128 | 20 | 2 days | |
|
SCREW | 912622 | 21 | 2 days | ||
|
CAP, AIR INLET | Y912659 | 21 | 2 days | ||
|
O-RING, HEATER | Y913079 | 22 | 11 days | ||
|
SLEEVE, INSULATING | 99001333 | 23 | 2 days | ||
|
ELEMENT, HEATING | 99002360 | WP99002360 | 23 | 2 days | |
|
BRACKET, ELEMENT | 99002361 | 24 | 11 days | ||
|
PALNUT, FLOAT | 911265 | WP911265 | 25 | 2 days | |
|
LEG, LEVELING | 912579 | WPW10143258 | 26 | 2 days | |
|
BOX, TERMINAL | 912563 | 27 | 2 days | ||
|
|
SCREW | 912365 | WP489128 | 27 | 2 days | |
|
FLOAT | 99002363 | WP99002363 | 28 | 2 days | |
|
SCREW | 912012 | 3400409 | 29 | 2 days | |
|
SWITCH, WATER LEVEL CONTROL | 99002560 | WP99002560 | 29 | 2 days | |
|
CLAMP, SPRING | 911856 | WP596669 | 3 | 2 days | |
|
|
SCREW | 912365 | WP489128 | 30 | 2 days | |
|
BRACKET, WATER LEVEL SWITCH | 912656 | 6-912656 | 30 | 2 days | |
|
SCREW, CABINET MOUNT | 912799 | WP489491 | 31 | 2 days | |
|
SEAL RING, INJECTOR | 912644 | 32 | 11 days | ||
|
NUT, HEATING ELEMENT | 912645 | 33 | 2 days | ||
|
HOOK, DRAIN HOSE | Y912790 | 34 | 11 days | ||
|
HOSE, INJECTOR | 912633 | 4 | 2 days | ||
|
INJECTOR, WATER | 912533 | 5 | 11 days | ||
|
PLUG, TUB | Y912907 | 6 | 11 days | ||
|
SCREW, ACCESS PANEL | 99001194 | 7 | 2 days | ||
|
PANEL, TOE (WHT) | 99001106 | 7 | 2 days | ||
|
SPRING, LATCH | 912648 | 8 | 2 days | ||
|
RETAINER, LATCH | 912650 | 8 | 11 days | ||
|
SCREW, LATCH | Y912873 | 8 | 11 days | ||
|
DOOR LATCH HOOK ASSY | 903098 | 8 | 2 days | ||
|
HOOK, LATCH | 99001355 | 8 | 11 days | ||
|
NUT-FILL SPOUT | 910170 | 9 | 11 days |
