Model# AGR6603SFW3

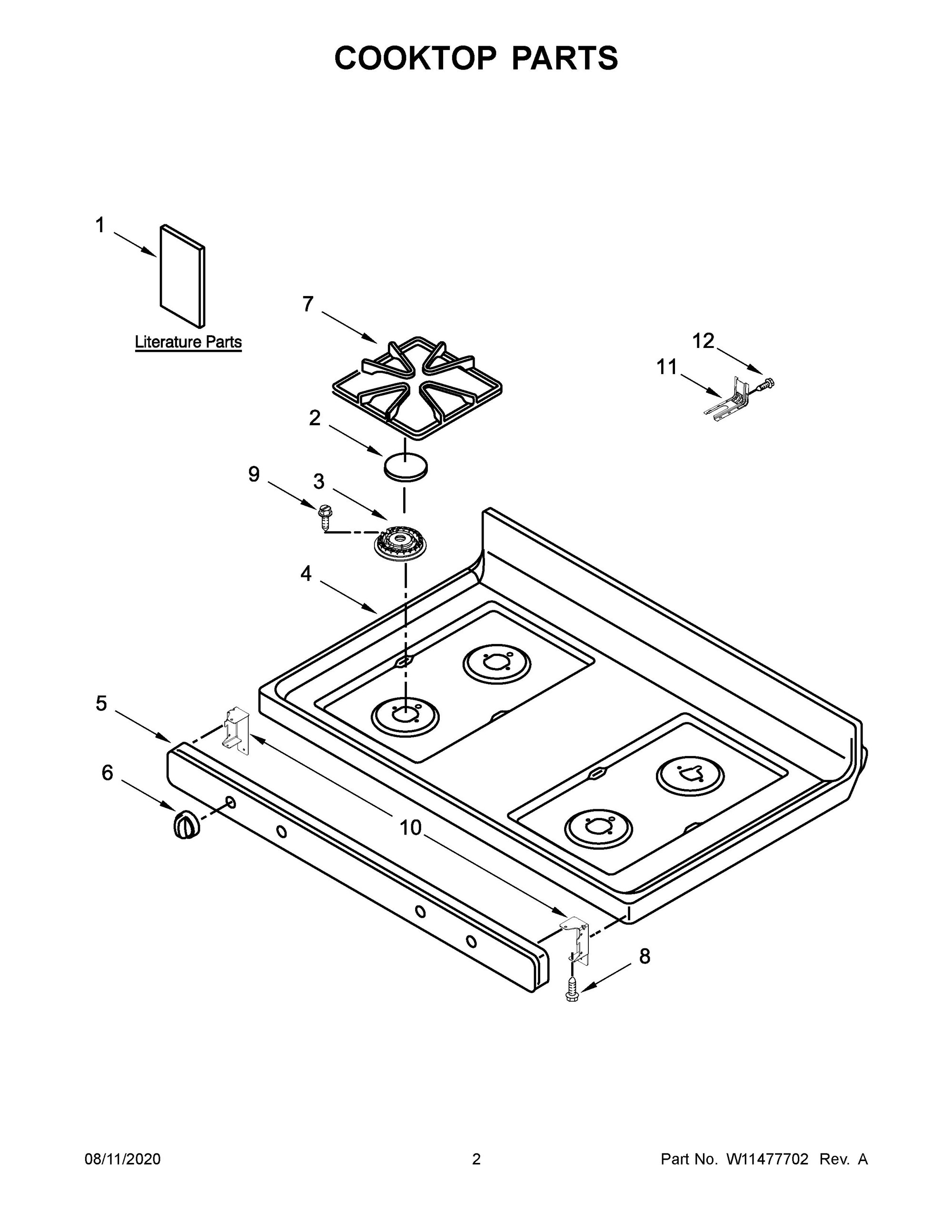

The image and part list below are associated with the component: 02 - COOKTOP PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
INSTALLATION INSTRUCTIONS | W11404103 | 1 | 11 days | ||
|
BRACKET, MANIFOLD | 8523249 | 10 | 2 days | ||
|
BRACKET, ANTI-TIP | W11379945 | W11447673 | 11 | 11 days | |
|
SCREW, ANTI-TIP KIT | 7101P485-60 | WP7101P485-60 | 12 | 2 days | |
|
USE & CARE GUIDE | W11404080 | 1A | 11 days | ||
|
TECH SHEET | W10873899 | 1B | 11 days | ||
|
WIRING DIAGRAM | W10873901 | 1C | 11 days | ||
|
SET, BURNER CAP (BLACK (SET OF 4)) | W11395131 | W11455147 | 2 | 11 days | |
|
SPREADER, FLAME (LEFT FRONT, RIGHT FRONT) | W11352018 | W11435630 | 3 | - |
|
|
SPREADER, FLAME (LEFT REAR) | W11352020 | W11435659 | 3A | 11 days | |
|
SPREADER, FLAME (RIGHT REAR) | W11352021 | W11435657 | 3B | - |
|
|
COOKTOP (BLACK) | W11418038 | W11475519 | 4 | 11 days | |
|
COOKTOP (WHITE) | W11418037 | W11480487 | 4A | 11 days | |
|
Panel, Manifold (Black) | 8523855 | 5 | 2 days | ||
|
Panel, Manifold (White) | 8523854 | WP8523854 | 5A | 2 days | |
|
KNOB, CONTROL (BLACK) | W10844795 | W11117407 | 6 | 2 days | |
|
KNOB, CONTROL (WHITE) | W10844794 | W11788674 | 6A | 11 days | |
|
GRATE KIT (SET OF FOUR) (BLACK) | W10682667 | W10915784 | 7 | 2 days | |
|
Screw | 3196169 | WP3196557 | 8 | - |
|
|
SCREW | W10673618 | W11241230 | 9 | 11 days | |
|
Clip, Harness | 313438 | NI | 11 days | ||
|
Clip, Wire | 3196520 | 3400964 | NI | 2 days | |
|
Clip, Wire | 3196896 | NI | 11 days | ||
|
CLAMP, WIRE | 7111P017-60 | W10841090 | NI | 2 days | |
|
FOLLOWING PARTS NOT ILLUSTRATED | N/P | NI | 11 days | ||
|
HARNESS, BAKE/BROIL | W10753750 | W11161843 | NI | 2 days | |
|
CLIP, GAS WIRING | W10334923 | NI | 11 days | ||
|
HARNESS, MAIN | W10842520 | NI | 2 days |
