Model# AER3311WAW0

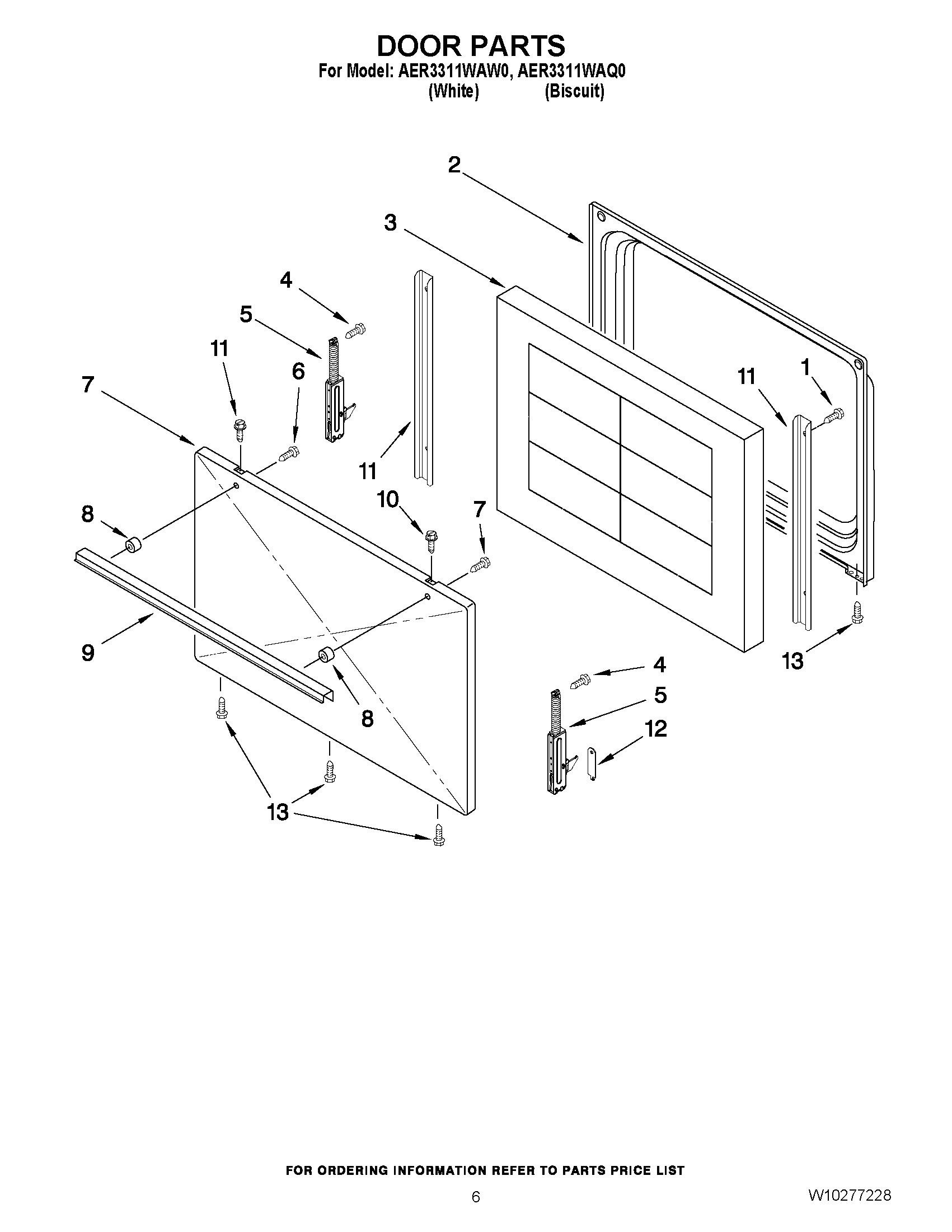

The image and part list below are associated with the component: 05 - DOOR PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Screw | W10031790 | WPW10031790 | 1 | 1 days | |
|
SCREW, TOP (WHITE) | 3196558 | 10 | 1 days | ||
|
SCREW, TOP (BISCUIT) | 3196559 | 10 | 1 days | ||
|
BRACKET, DOOR | 9761504 | W11699790 | 11 | 11 days | |
|
CLIP,DOOR MNTG | 9761517 | 12 | 1 days | ||
|
Screw | 3196165 | WP3196175 | 13 | 1 days | |
|
LINER | 9761342 | 2 | 1 days | ||
|
Insulation, Door | 8272618 | WPW10278991 | 3 | 1 days | |
|
Screw | W10031780 | W10777162 | 4 | 1 days | |
|
HINGE | 9761495 | W10368723 | 5 | 1 days | |
|
SCREW | 3196163 | WP3196163 | 6 | 1 days | |
|
PANEL, STEEL (WHITE) | 3195560 | W10903447 | 7 | 1 days | |
|
PANEL, STEEL (BISCUIT) | 8273522 | 7 | 11 days | ||
|
SPACER, HANDLE (WHITE) | 3196143 | 8 | 11 days | ||
|
SPACER, HANDLE (BISCUIT) | 8273879 | 8 | 1 days | ||
|
HANDLE, OVEN DOOR (WHITE) | 3195263 | WP3195263 | 9 | 1 days | |
|
HANDLE, OVEN DOOR (BISCUIT) | 8273506 | 9 | 11 days |
