Model# ABB2221FEZ

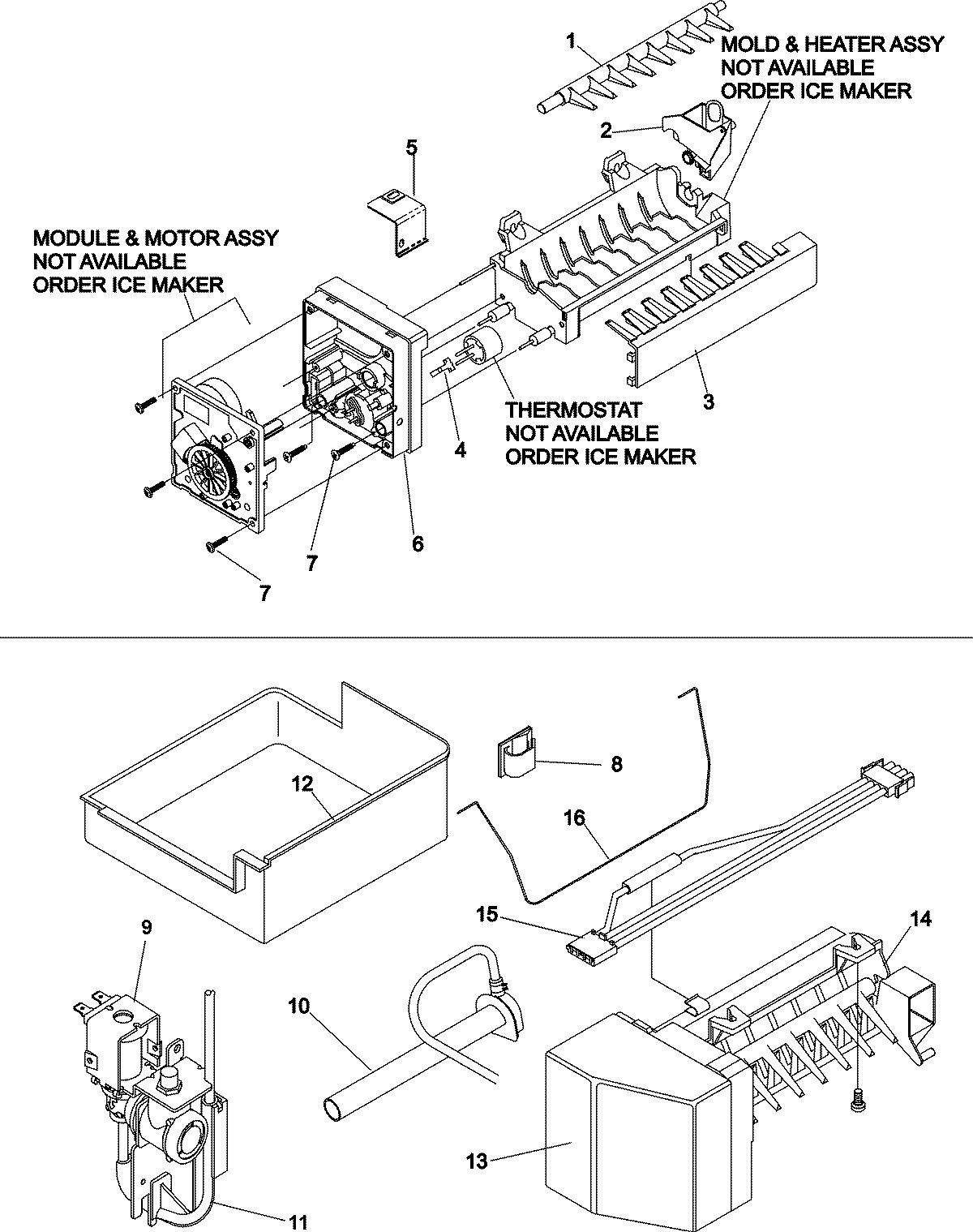

The image and part list below are associated with the component: 07 - OPTIONAL ICE MAKER KIT IC11B P1328003W:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
EJECTOR, ICE | 95101-1 | WP627843 | 1 | 4 days | |
|
ELBOW, FILL TUBE | 10463201 | W11176463 | 10 | 11 days | |
|
TUBE, PLASTIC | B5705323 | W10823511 | 11 | 4 days | |
|
PAN, ICE | 67001255 | WP67001255 | 12 | 4 days | |
|
COVER, ICE MAKER | 10519807 | WPW10289690 | 13 | 4 days | |
|
ICE MAKER | D7824706 | D7824706Q | 14 | 4 days | |
|
HARNESS, ICE MAKERx | 67001489 | WPD7813010 | 15 | 4 days | |
|
ARM, IM SHUTOFF | 67004028 | WP67004028 | 16 | 4 days | |
|
INLET, WATER | 95100-1 | WP628356 | 2 | 4 days | |
|
STRIPPER, ICE | 95102-1 | WP2182124 | 3 | 4 days | |
|
RETAINER, THERMOSTAT | 95104-1 | WP2315522 | 4 | 4 days | |
|
BRACKET, MODULE & HEATER | 95107-1 | WP2256087 | 5 | 4 days | |
|
SUPPORT, MODULE HOUSING | 95103-1 | WP2195914 | 6 | 4 days | |
|
SCREW | 95106-1 | WP681249 | 7 | 4 days | |
|
CLIP | M0104106 | WPM0104106 | 8 | 4 days | |
|
VALVE, WATER | 67001241 | WP67003753 | 9 | 4 days | |
|
COUPLING | 10244904 | NI | 11 days | ||
|
RETAINER, TUBE | 67001258 | NI | 11 days | ||
|
CLAMP, TUBE | M0108105 | W10833902 | NI | 4 days | |
|
INSERT, PLASTIC TUBE | A3223101 | WPA3223101 | NI | 4 days | |
|
SCREW | M0251015 | 681390 | NI | 4 days | |
|
SCREW, BRACKET | 95108-1 | WP489128 | NI | 4 days | |
|
CLIP, SPEED | M0114003 | WPM0114003 | NI | 4 days | |
|
ICE MAKER HOOK UP KIT | R0131235 | 8003RP | NI | 4 days |
