Model# 7MMVWC200DW1

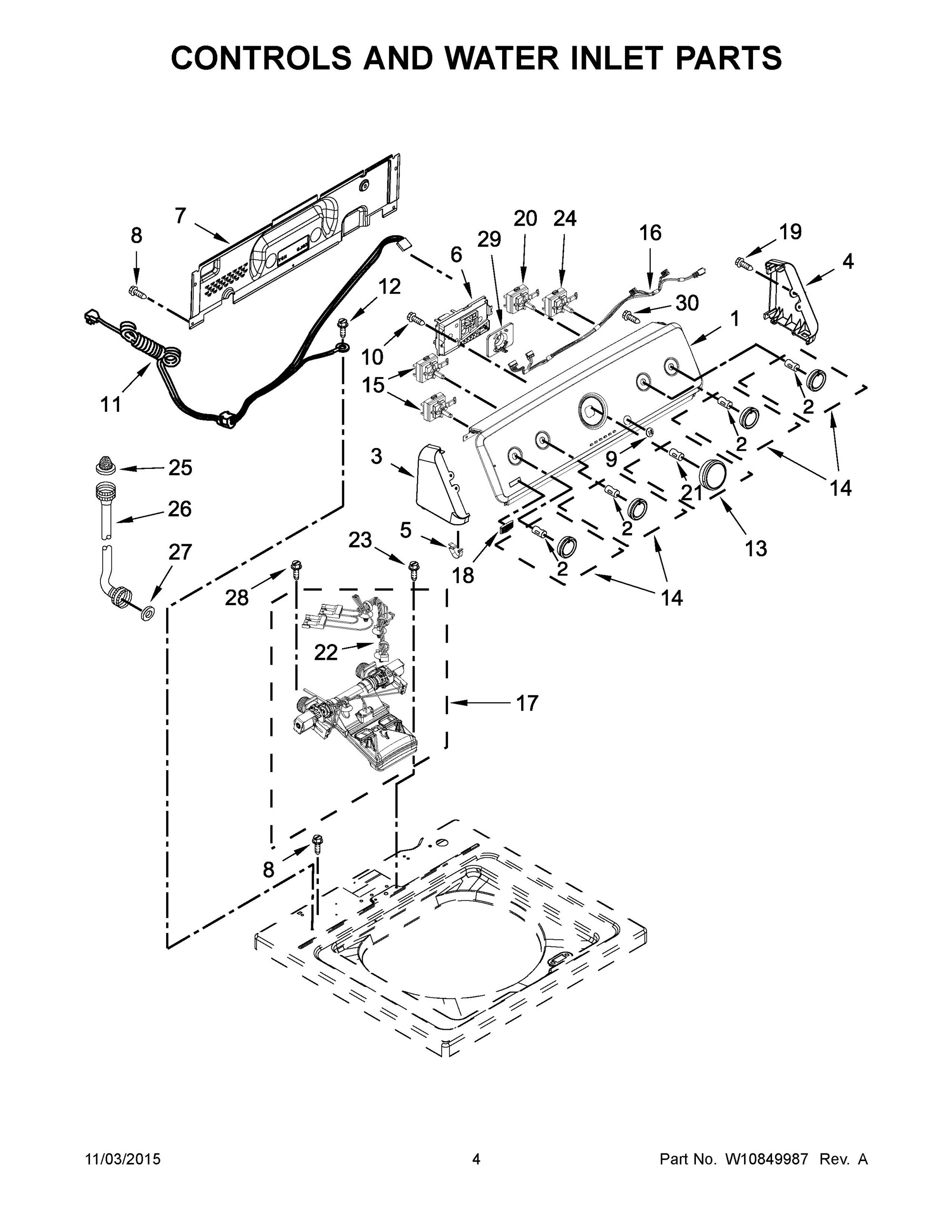

The image and part list below are associated with the component: 03 - CONTROLS AND WATER INLET PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PANEL, CONSOLE | W10643289 | 1 | 11 days | ||
|
SCREW | 90767 | WP90767 | 10 | - |
|
|
CORD, POWER | W10525194 | WPW10525194 | 11 | 1 days | |
|
SCREW | 3400076 | W10846509 | 12 | 1 days | |
|
ASSEMBLY, TIMER KNOB (GREY) | W10558463 | WPW10558463 | 13 | 1 days | |
|
ASSEMBLY, CONTROL KNOB (GREY) | W10562155 | WPW10562155 | 14 | 1 days | |
|
TEMPERATURE CONTROL | W10285512 | WPW10285512 | 15 | 1 days | |
|
HARNESS, UPPER | W10291177 | 16 | 1 days | ||
|
INLET ASSEMBLY, WATER | W10683653 | WPW10683653 | 17 | 1 days | |
|
BADGE | W10199708 | 18 | 1 days | ||
|
SCREW | 359625 | W11693756 | 19 | 11 days | |
|
CLIP, SPRING | 8536939 | WP8536939 | 2 | 1 days | |
|
SWITCH, ROTARY ENCODER (3 POSITION) | W10285517 | WPW10285517 | 20 | 1 days | |
|
CLIP, SPRING | 688805 | WP688805 | 21 | - |
|
|
HARNESS, VALVE | W10684972 | W10876654 | 22 | 1 days | |
|
SCREW (STAINLESS) | 8281163 | WP8281163 | 23 | 1 days | |
|
SWITCH, ROTARY ENCODER (2 POSITION) | W10285511 | WPW10285511 | 24 | 1 days | |
|
WASHER, FILTER | W10810281 | 285452A | 25 | 1 days | |
|
HOSE, WATER INLET (COLD) | W10194210 | WP89503 | 26 | 1 days | |
|
|
HOSE, WATER INLET (HOT) | W10194211 | WP89503 | 26A | 1 days | |
|
WASHER, HOSE | W10242307 | WP16123 | 27 | 1 days | |
|
SCREW | W10213953 | WPW10213953 | 28 | 1 days | |
|
GROMMET, PUSH TO START | W10593638 | 29 | 1 days | ||
|
END CAP (LEFT) (WHITE) | W10193824 | WPW10193824 | 3 | 1 days | |
|
|
Screw | 8533971 | WP90767 | 30 | - |
|
|
END CAP (RIGHT) (WHITE) | W10193821 | WPW10193821 | 4 | 1 days | |
|
CLIP, CONSOLE | 8312709 | WP8312709 | 5 | 1 days | |
|
CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR | W10723775 | 6 | 11 days | ||
|
PANEL, CONSOLE REAR COVER | W10461159 | WPW10461159 | 7 | - |
|
|
Screw | 1157158 | 8 | 11 days | ||
|
PUSH BUTTON, START | W10584360 | W11164083 | 9 | 1 days |
